Constant Velocity Joint Boot: Service and Repair

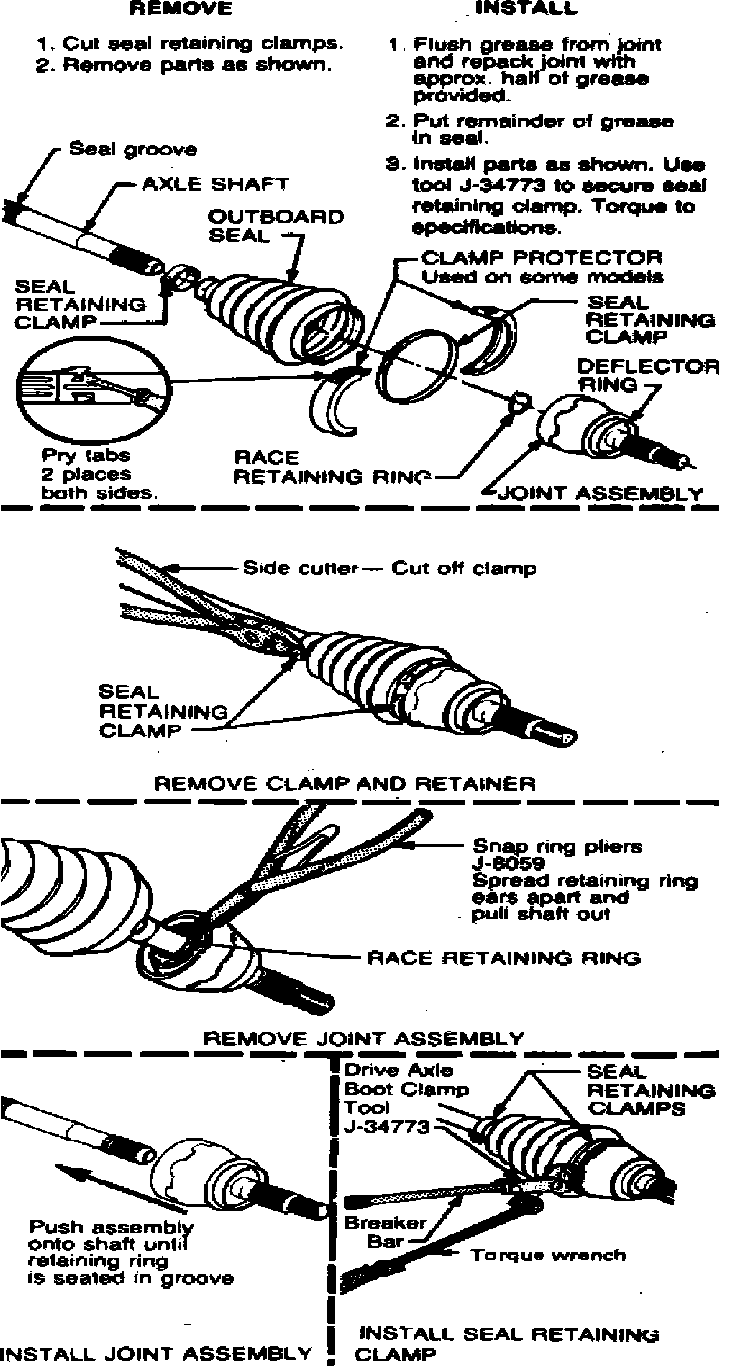

Fig. 9 Outer constant velocity joint seal removal & installation. 1985-88 models:
