Suspension Spring ( Coil / Leaf ): Service and Repair

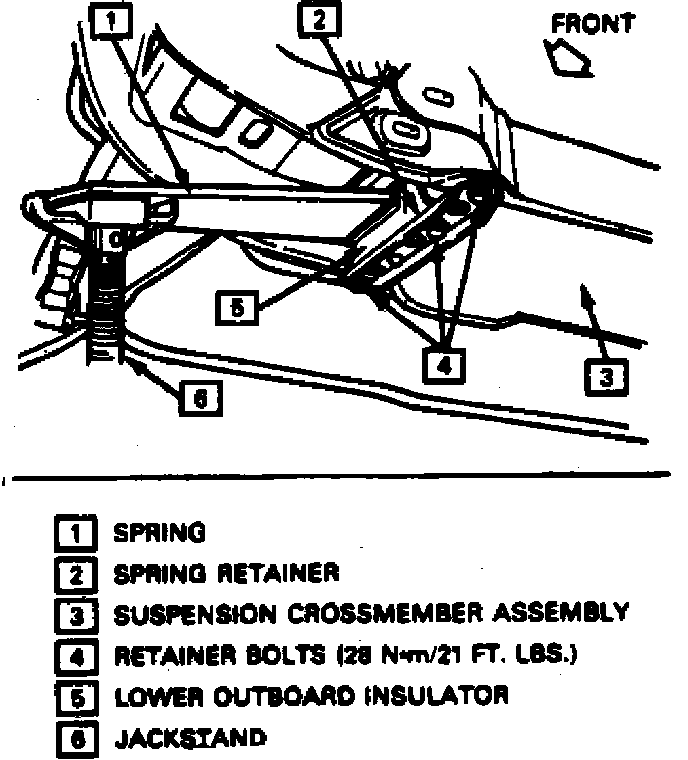

Fig. 6 Removing spring:

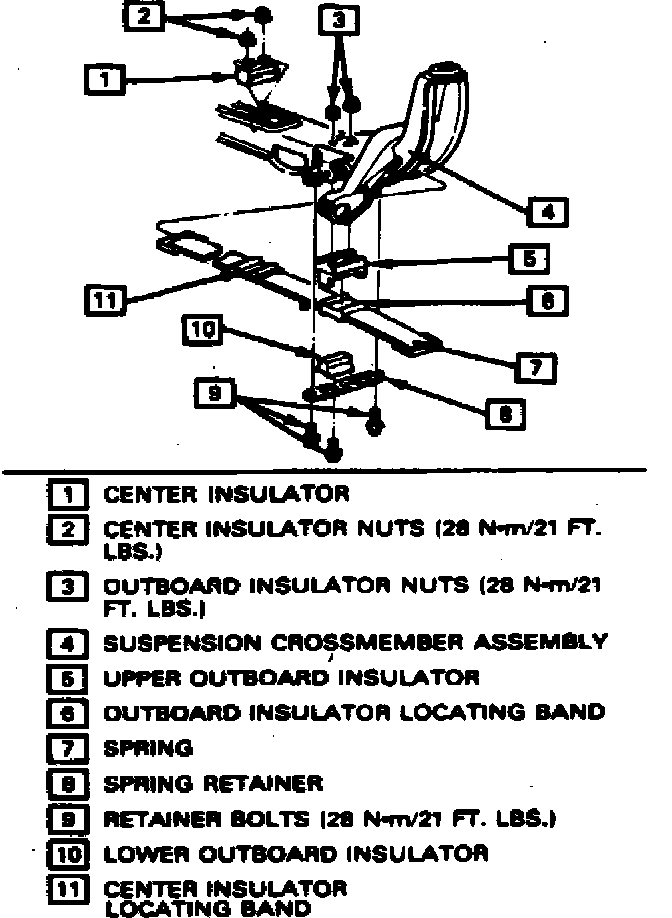

Fig. 7 Exploded view of spring installation:

Removal of rear spring requires disassembly of either left or right side of suspension while leaving opposite side intact. Spring may be removed from either side of vehicle.
1. Remove lower control arm as outlined.
2. Place suitable support under end of spring as shown in Fig. 6, then lower vehicle so weight of vehicle compresses spring. Ensure jack stand can support weight of vehicle and is properly positioned under spring.
3. Remove 3 spring retainer bolts, retainer and lower insulator, Fig. 7, from end of spring nearest support stand.
4. Slowly raise vehicle, allowing spring to deflect downward until spring no longer exerts force on stand.
5. Remove retainer bolts, retainer and insulator from opposite end of spring, then withdraw spring from crossmember.
6. Remove upper spring insulators.
7. Inspect spring insulators and retainers and replace as needed.
8. Install center and upper outboard insulators in crossmember and torque bolts to 21 ft. lbs. Ensure arrows on upper outboard insulators point toward centerline of vehicle.
9. Position spring in crossmember, ensuring outboard and center insulator bands are centered on spring insulators.
10. Install lower insulator and retainer on side opposite disassembled portion of suspension, torque retaining bolts to 21 ft. lbs, then place suitable stand under free end of spring.
11. Lower vehicle, allowing weight to load spring and deflect free end of spring into position.
12. Install lower insulator and retainer, and torque bolts to 21 ft. lbs.
13. Raise vehicle and remove stand.
14. Reverse remaining procedure to complete installation.
