Power Steering Pump Replace

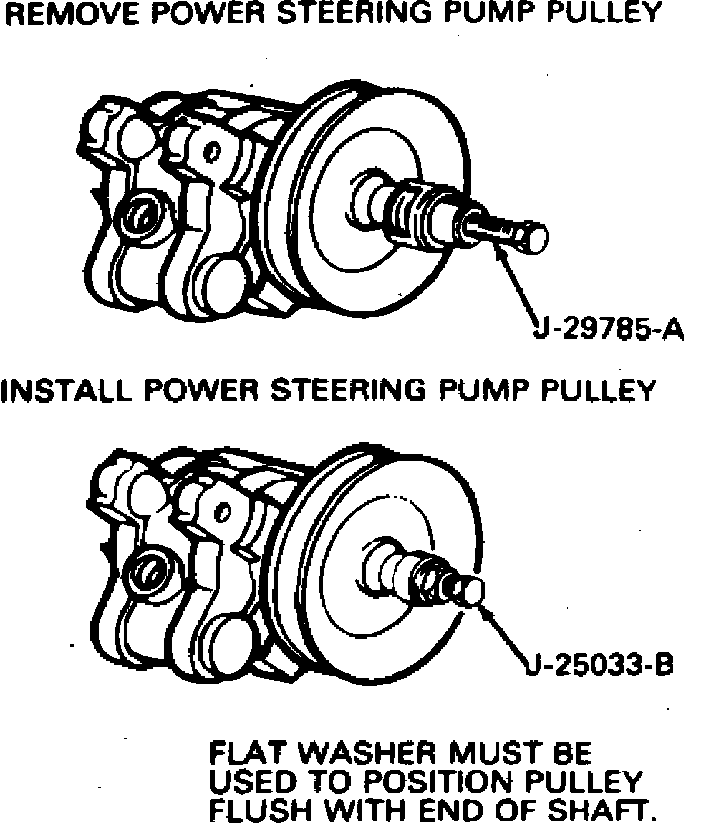

Fig. 10 Power steering pump pulley removal. Eldorado & Seville:

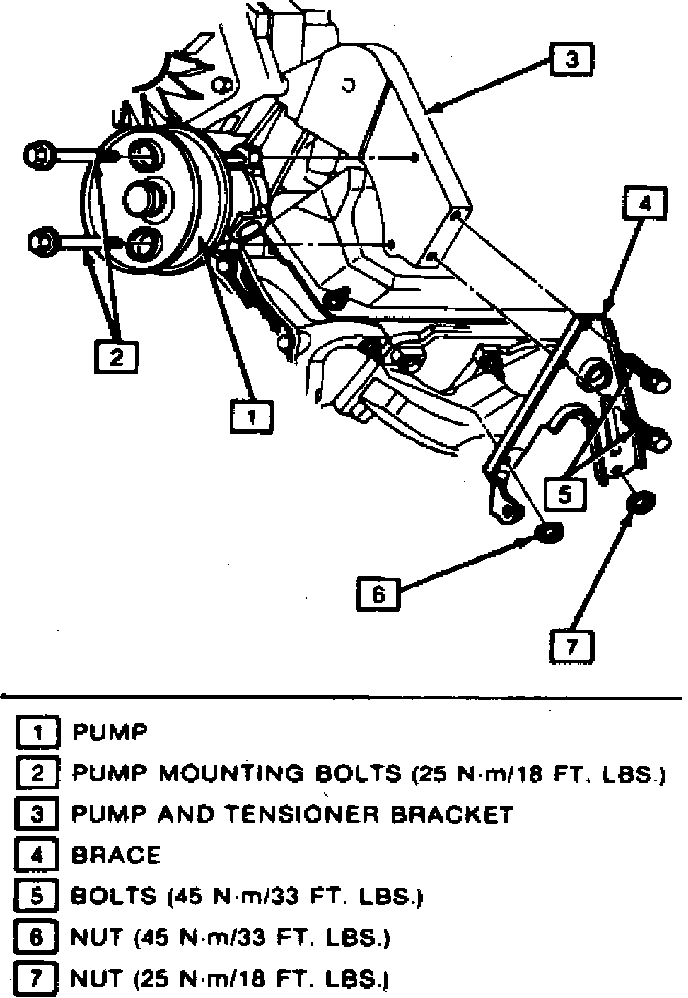

Fig. 11 Power steering pump installation. Eldorado & Seville:

ELDORADO & SEVILLE
1. Remove serpentine drive belt.
2. Remove pump pulley using suitable puller, Fig. 10.
3. Disconnect pressure and return lines from pump, noting position for installation.
4. Remove 2 pump mounting bolts, Fig. 11, and the pump.
5. Reverse procedure to install.
