Electrical Diagrams

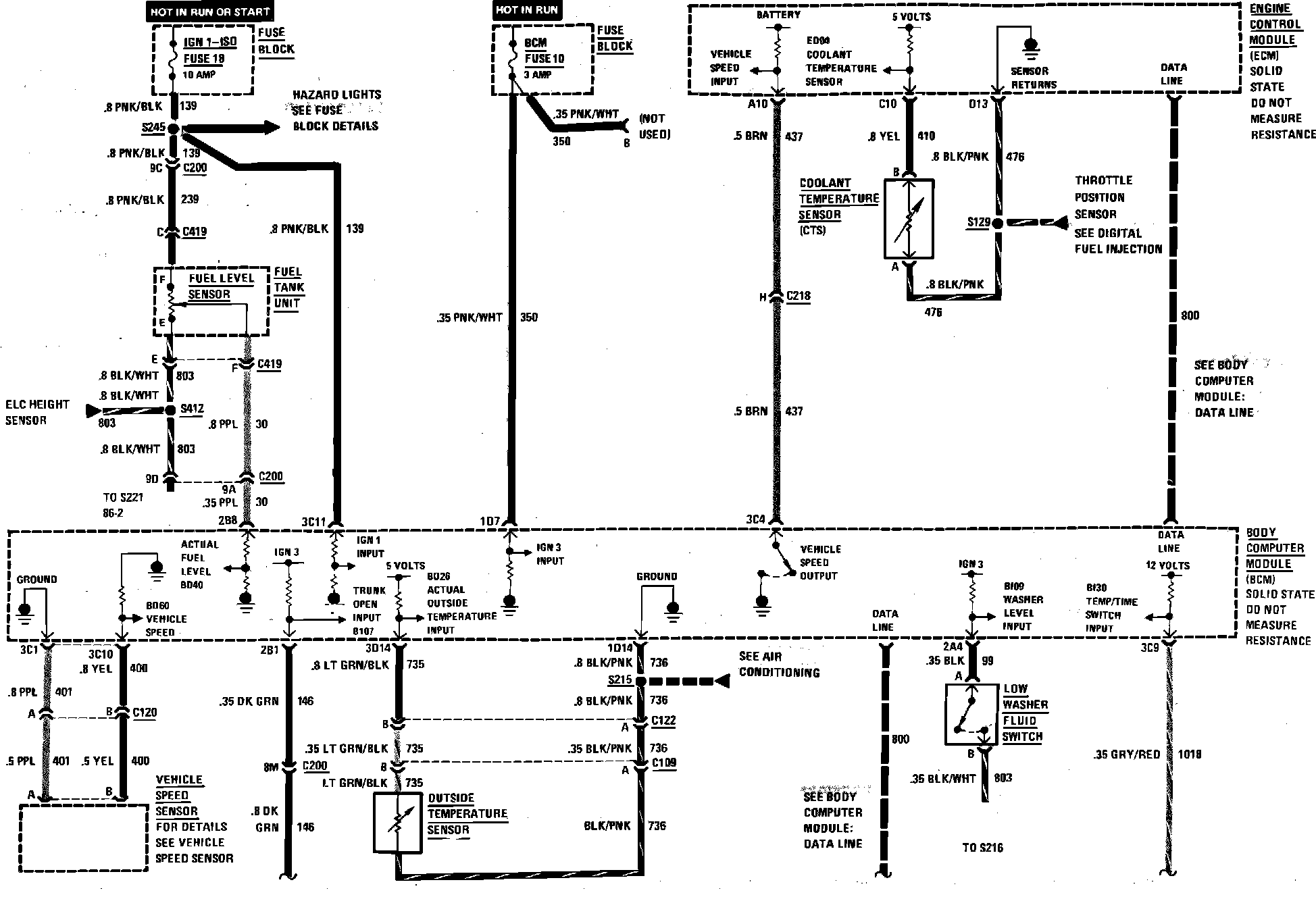

Driver Information Center Wiring Circuit (Part 1 Of 3):

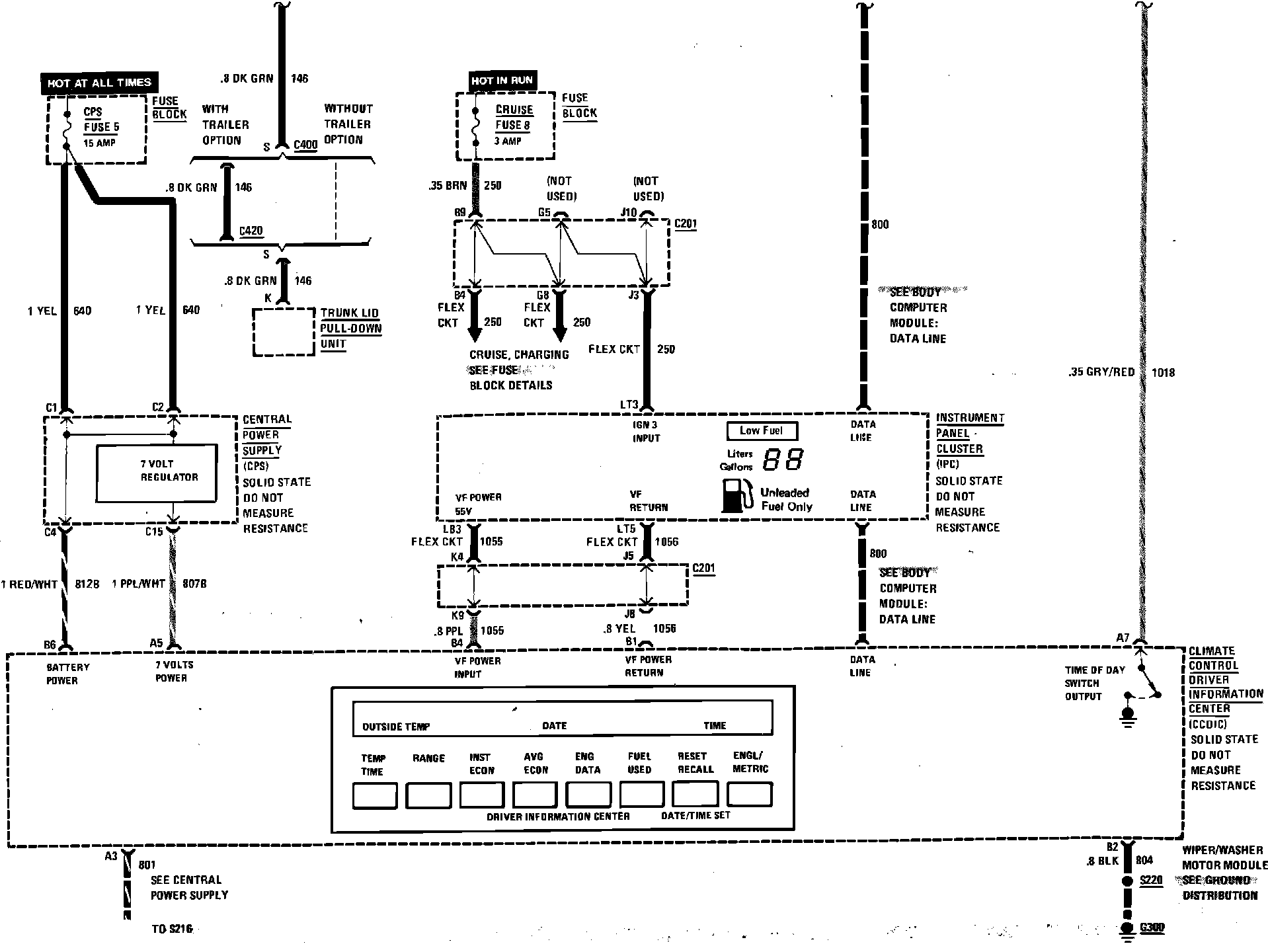

Driver Information Center Wiring Circuit (Part 2 Of 3):

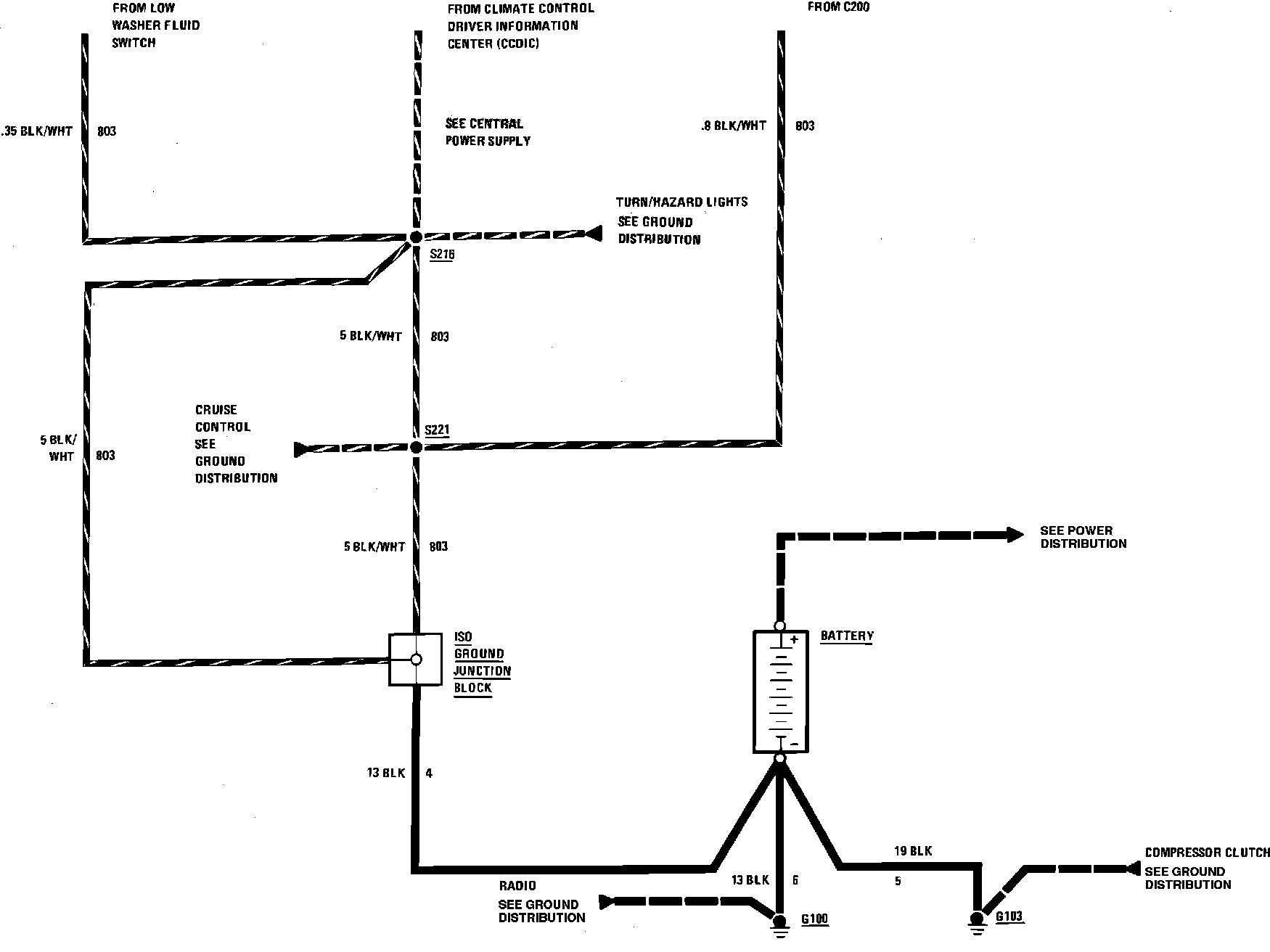

Driver Information Center Wiring Circuit (Part 3 Of 3):
