Chart C-6 Air Management Check
Chart C-6 Air Management Check

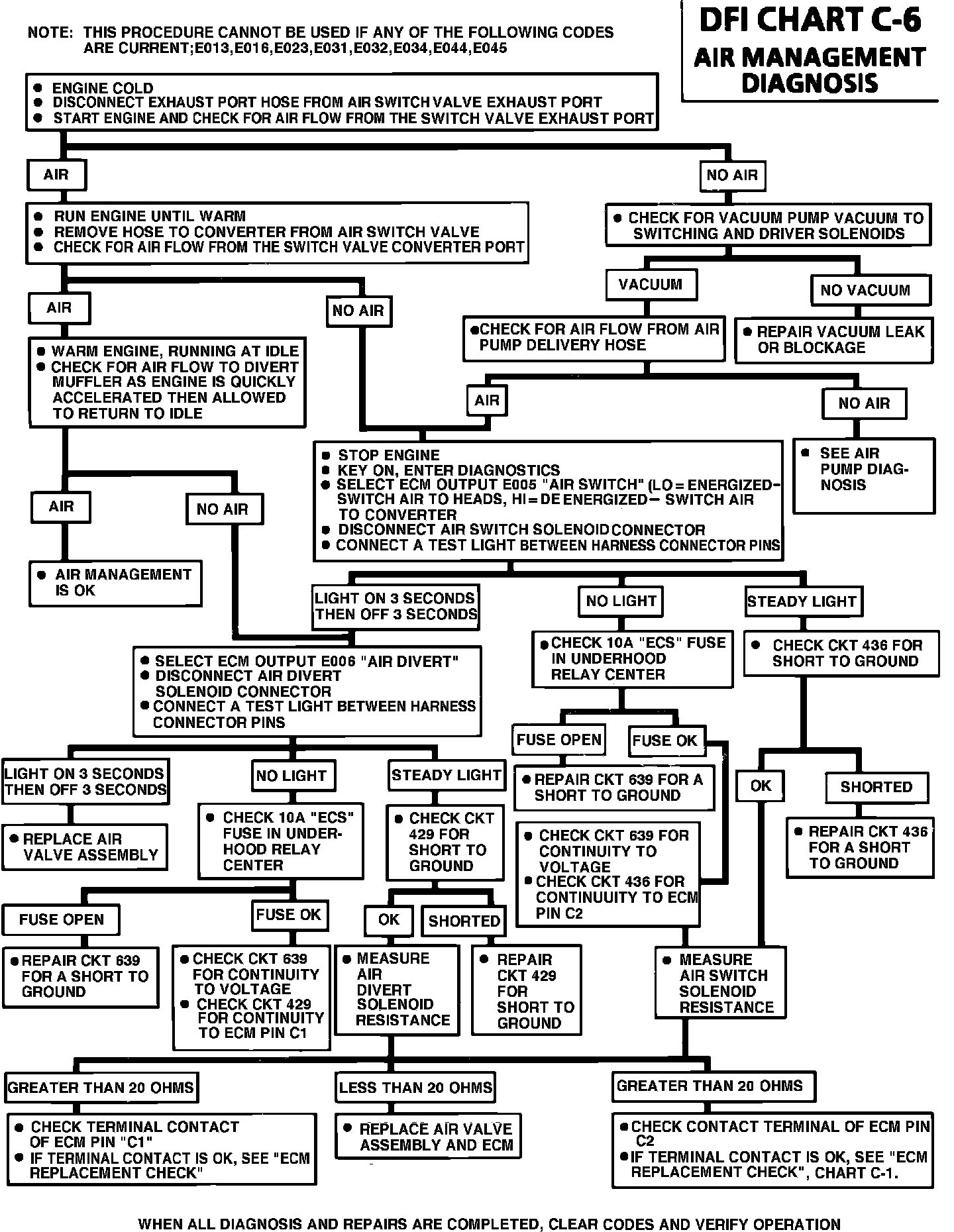

Fig. 23 Air Management Diagnosis (Chart C-6):
