A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
C Charts
>>
Chart C-4 EST System Check
Chart C-4 EST System Check

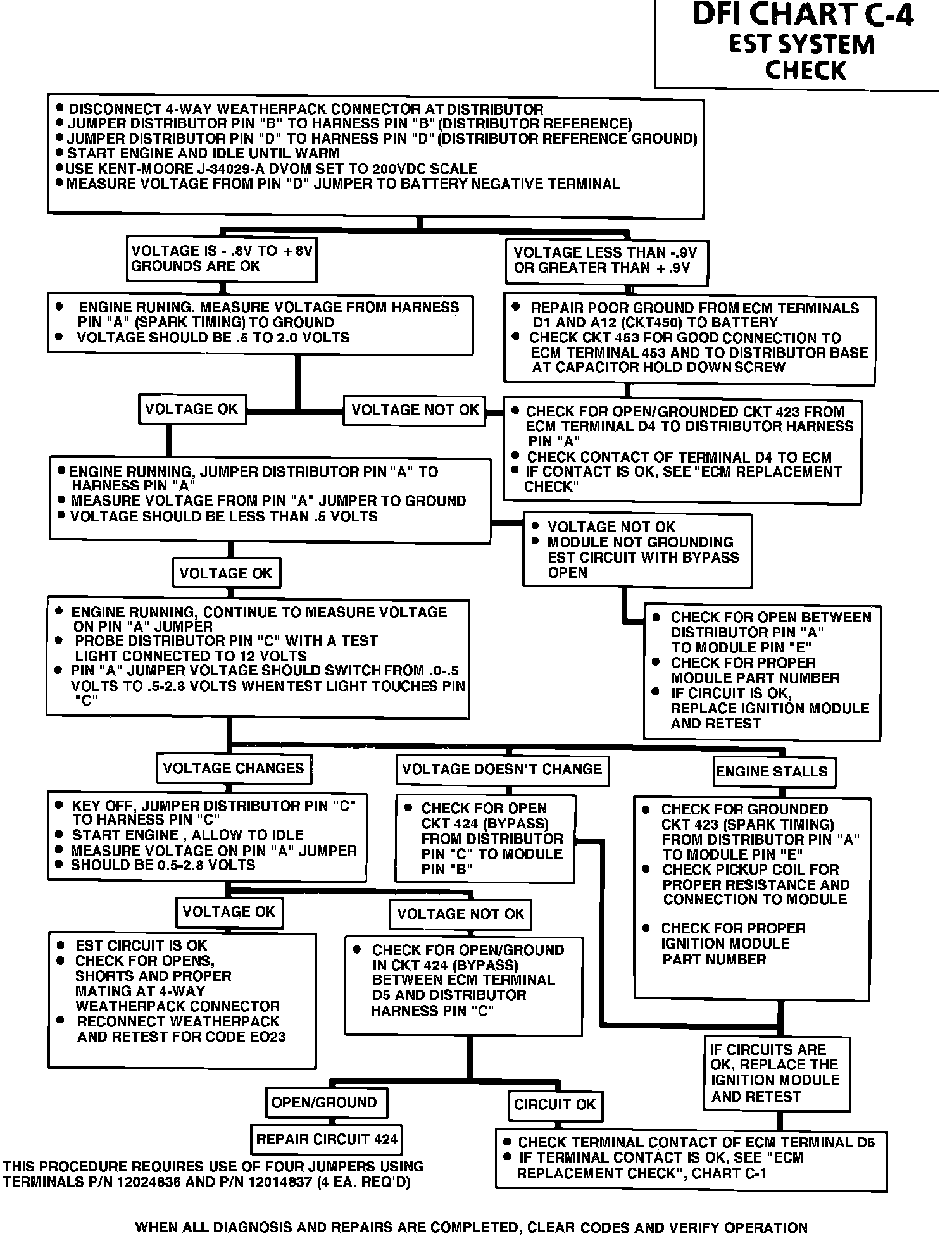

Fig. 22 EST System Check (Chart C-4):
