Chart A-6 Oxygen Sensor Not Ready
Chart A-6 Oxygen Sensor Not Ready

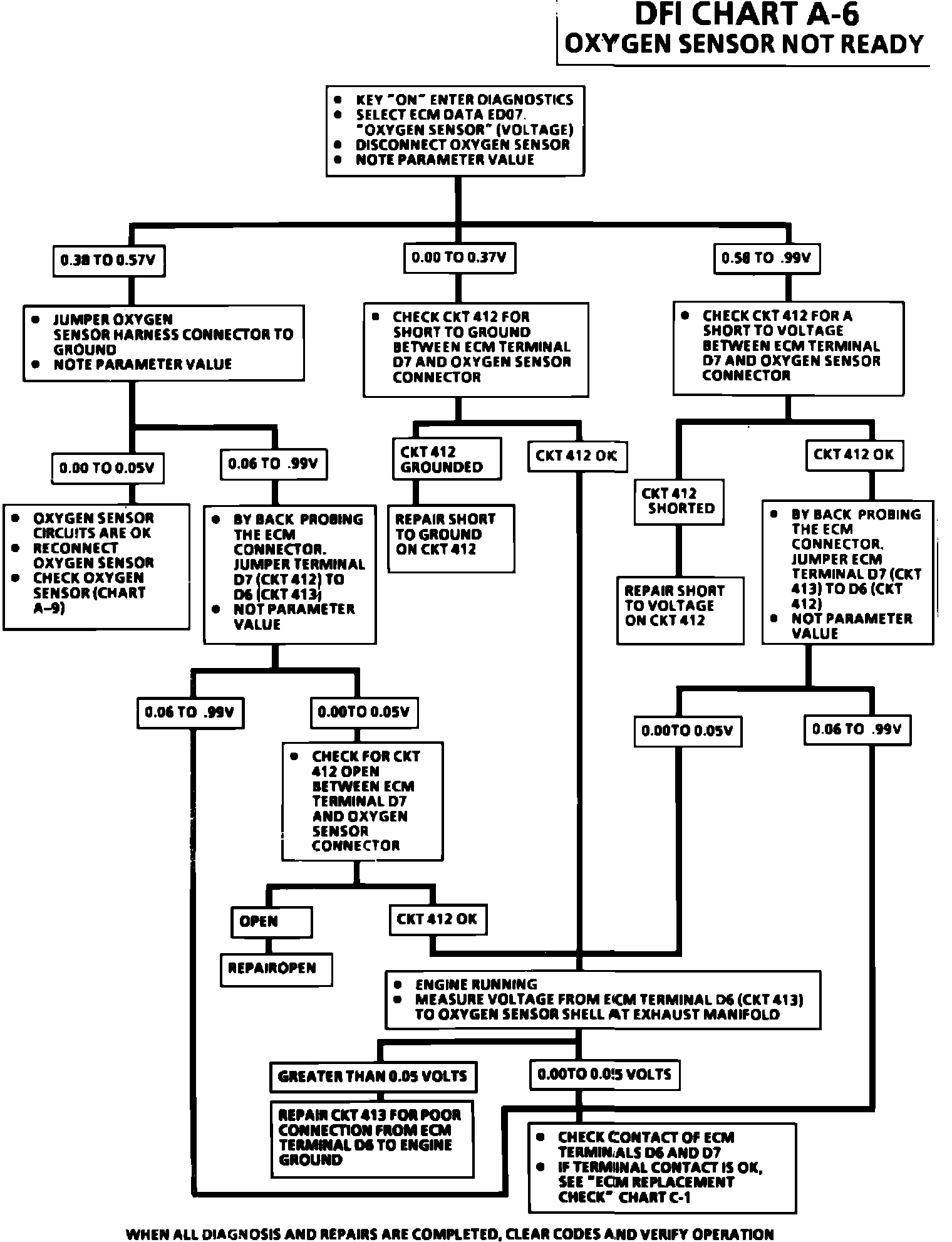

Fig. 16 Oxygen Sensor Not Ready Diagnosis (Chart A-6):
