Chart A-5 Injector System Diagnosis
Chart A-5 Injector System Diagnosis

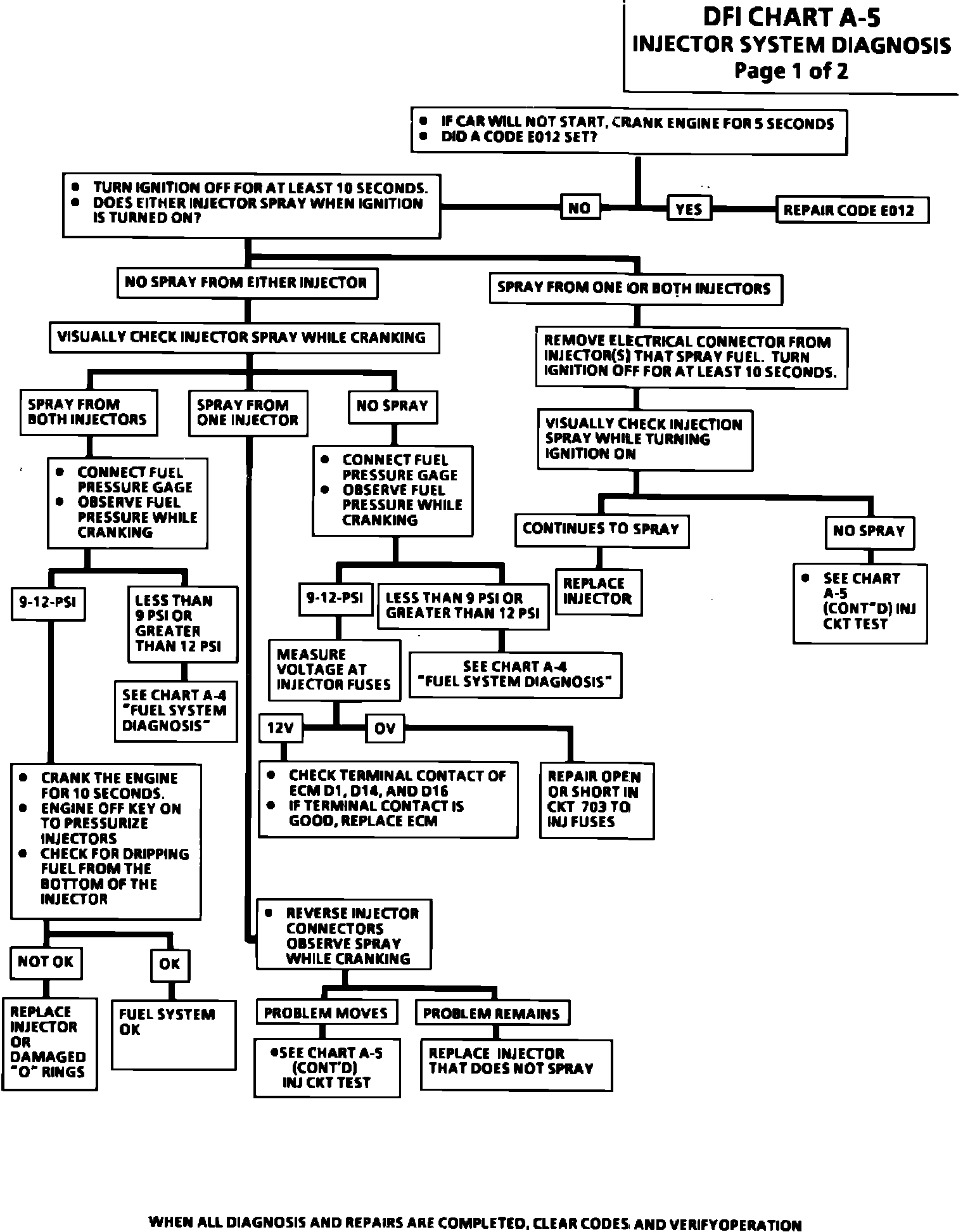

Fig. 15a Injector System Diagnosis (Chart A-5 Part 1 of 2):

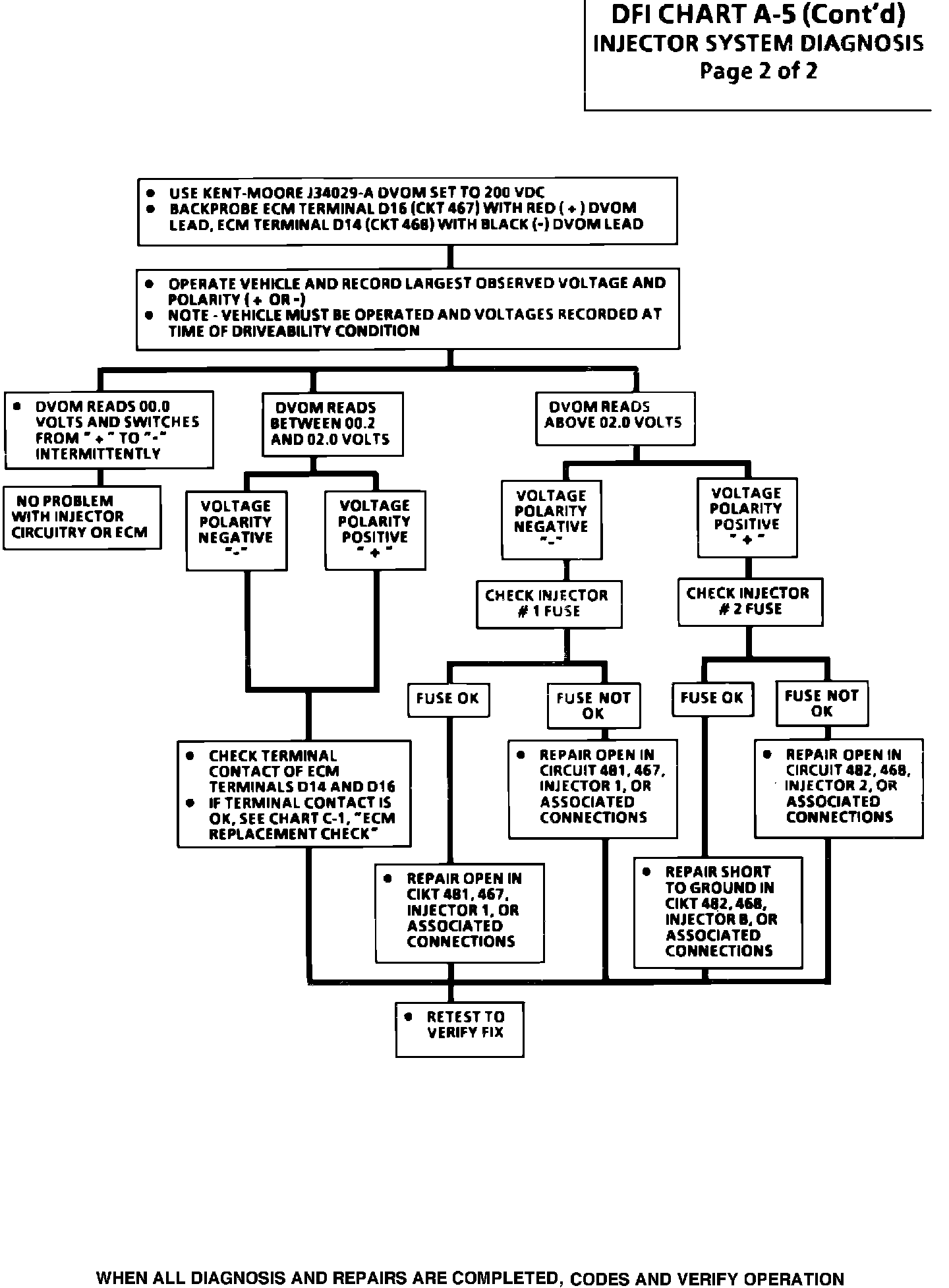

Fig. 15b Injector System Diagnosis (Chart A-5 Part 2 of 2):
