Home
>>
Cadillac
>>
1987
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
A Charts
>>
Chart A Multiple Codes Stored Hard
Chart A Multiple Codes Stored Hard

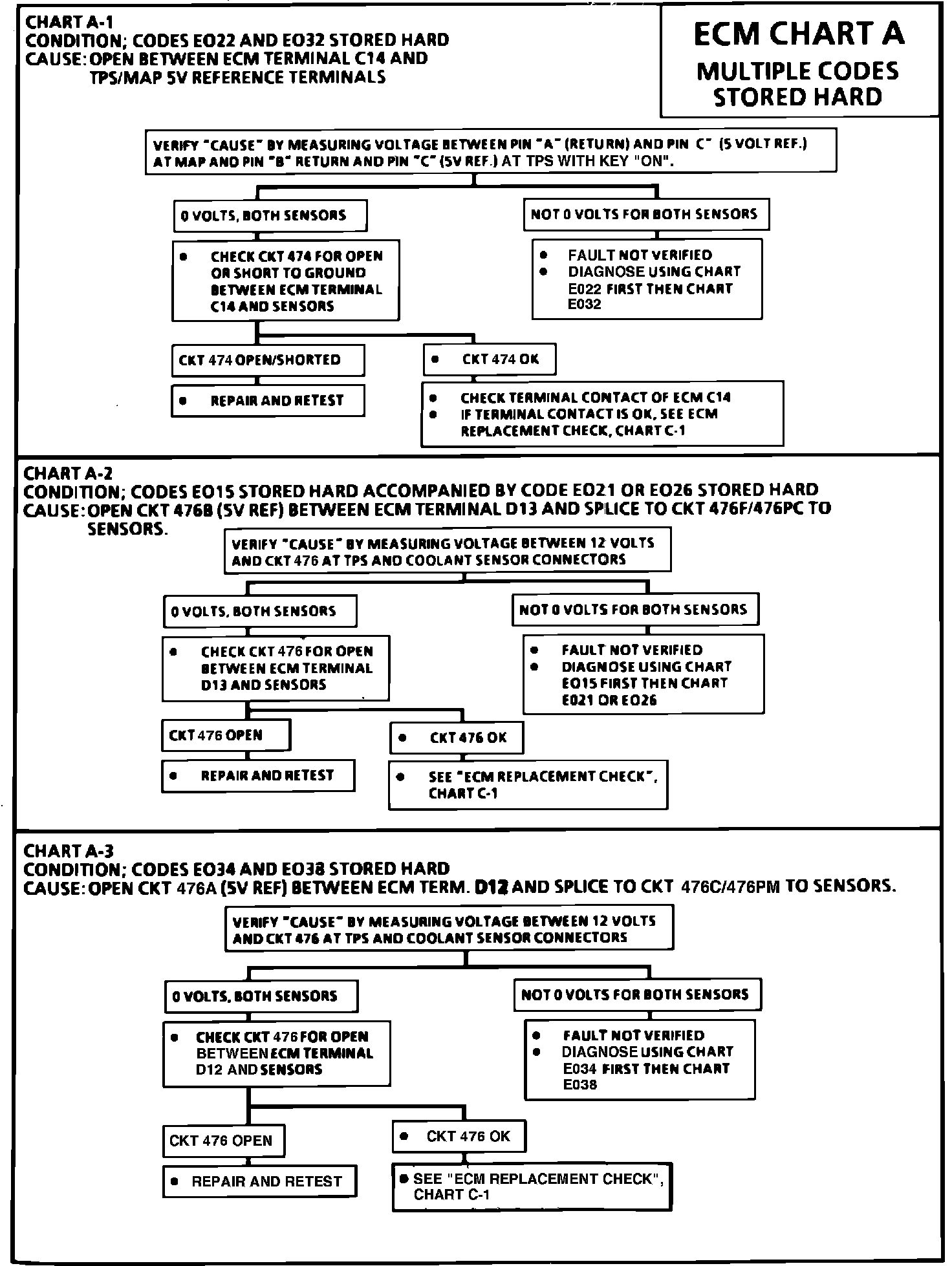

Fig. 28 ECM Multiple Codes Stored Hard (Chart A):
