Cadillac
>>
1987
>>
Eldorado V8-252 4.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

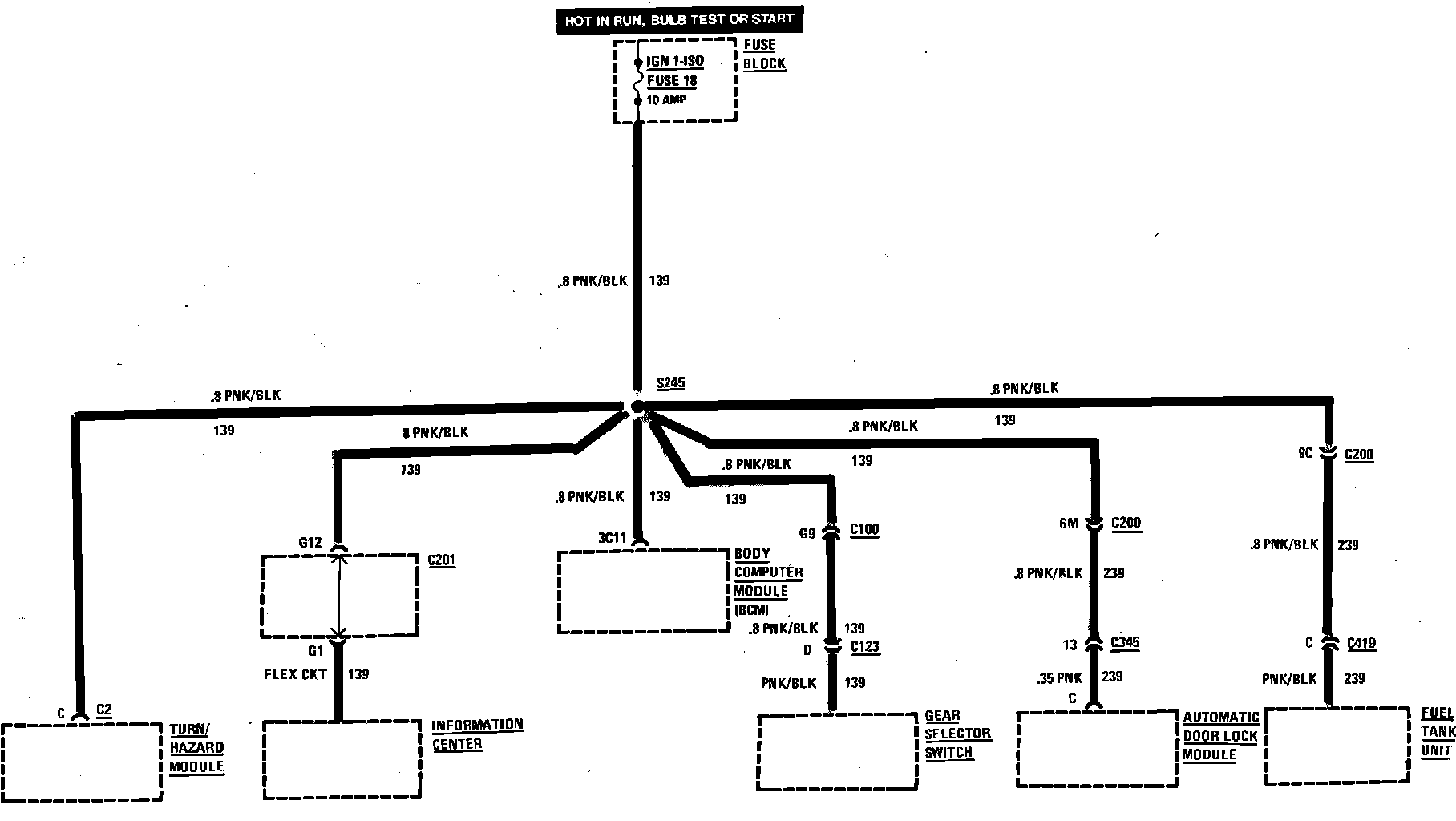

Fuse 18
Fuse 18
Fuse Block Details (Fuse 18):
