Antenna Motor: Service and Repair

Antenna Mast Replacement Procedure

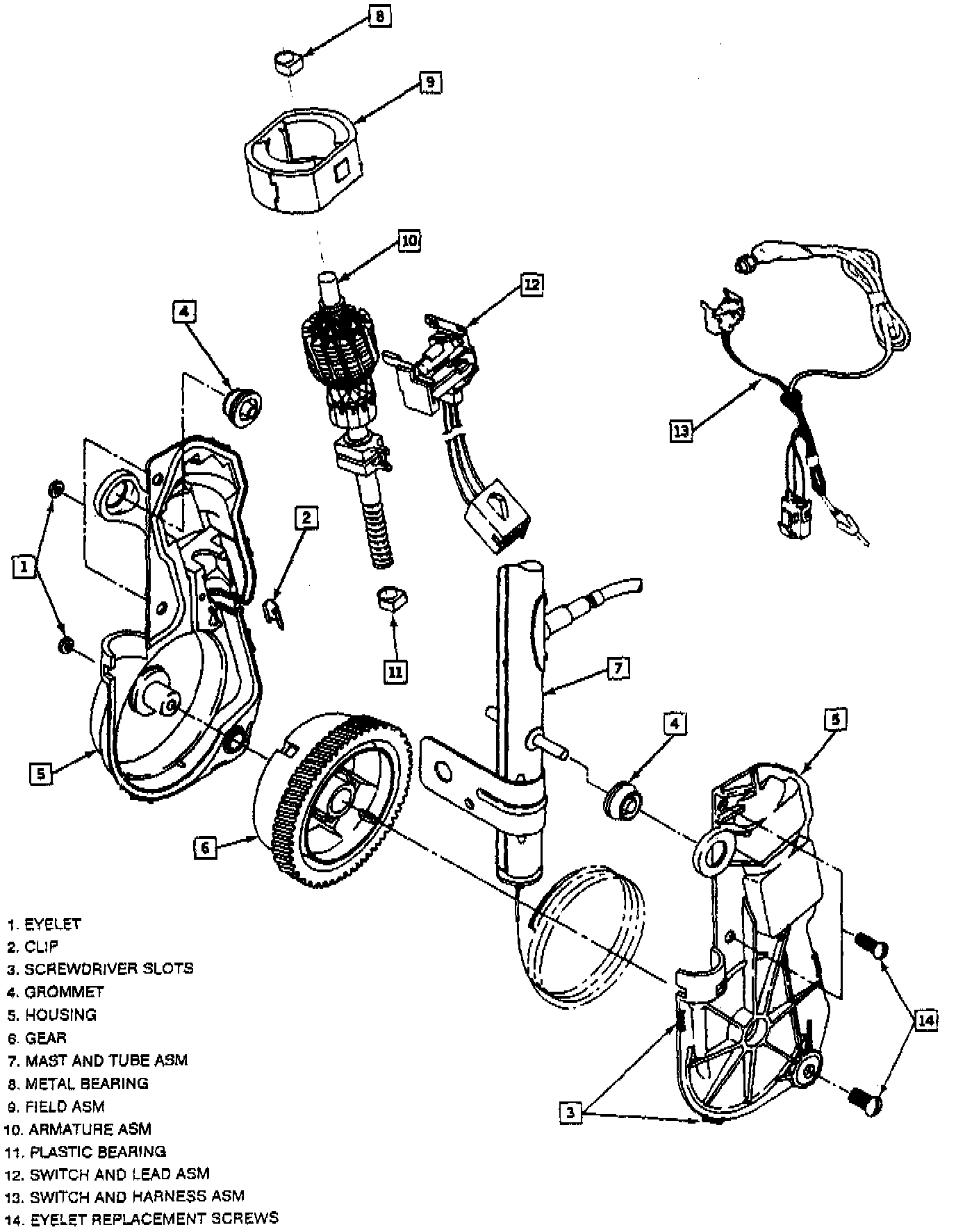

Power Antenna Disassembled View:

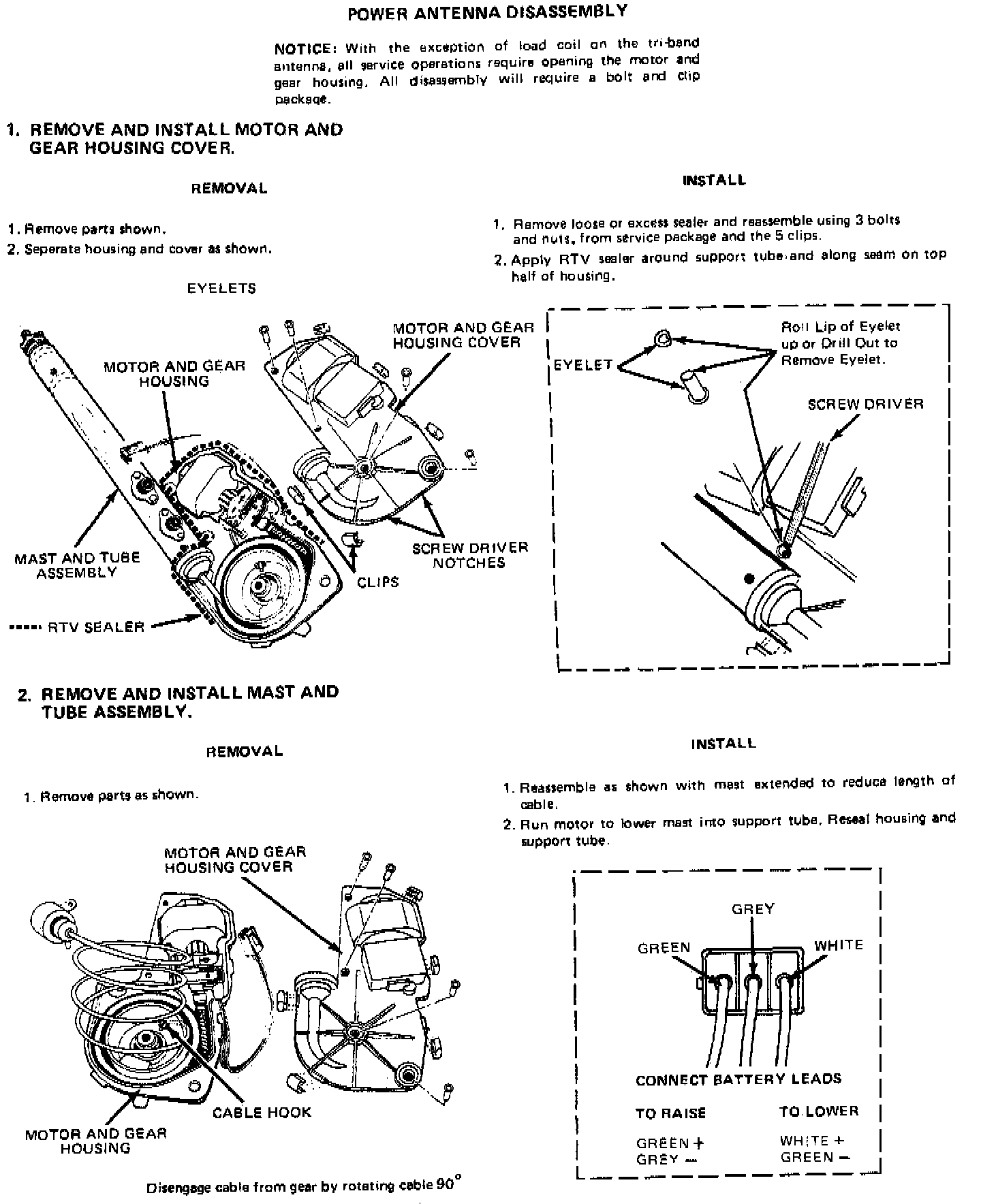

Slim Line Antenna Disassembly (All):

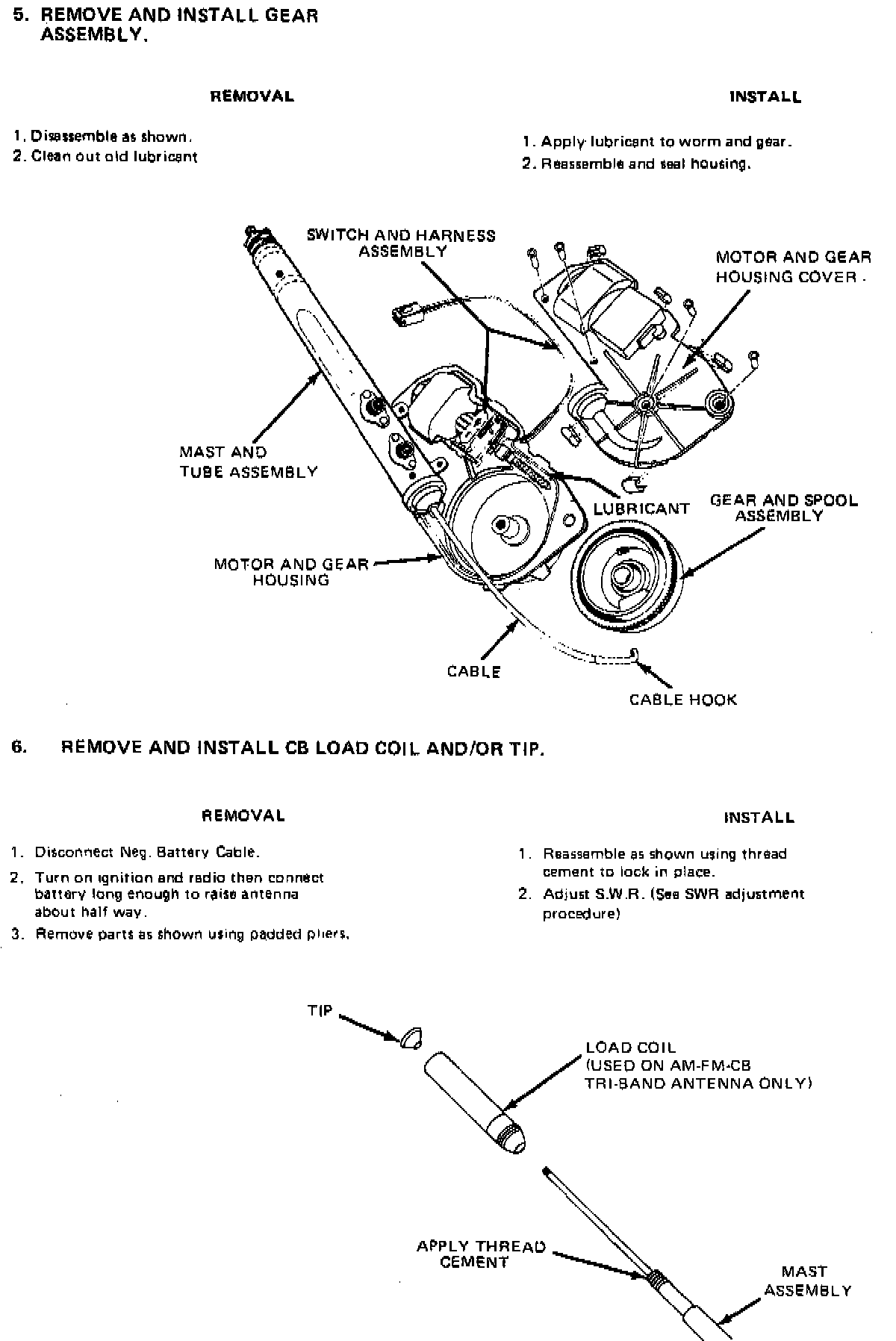

Slime Line Antenna Disassembly - Cont. (All):




Slim Line Antenna Disassembly - Cont. (All):
