Fuel Meter Cover, Replace

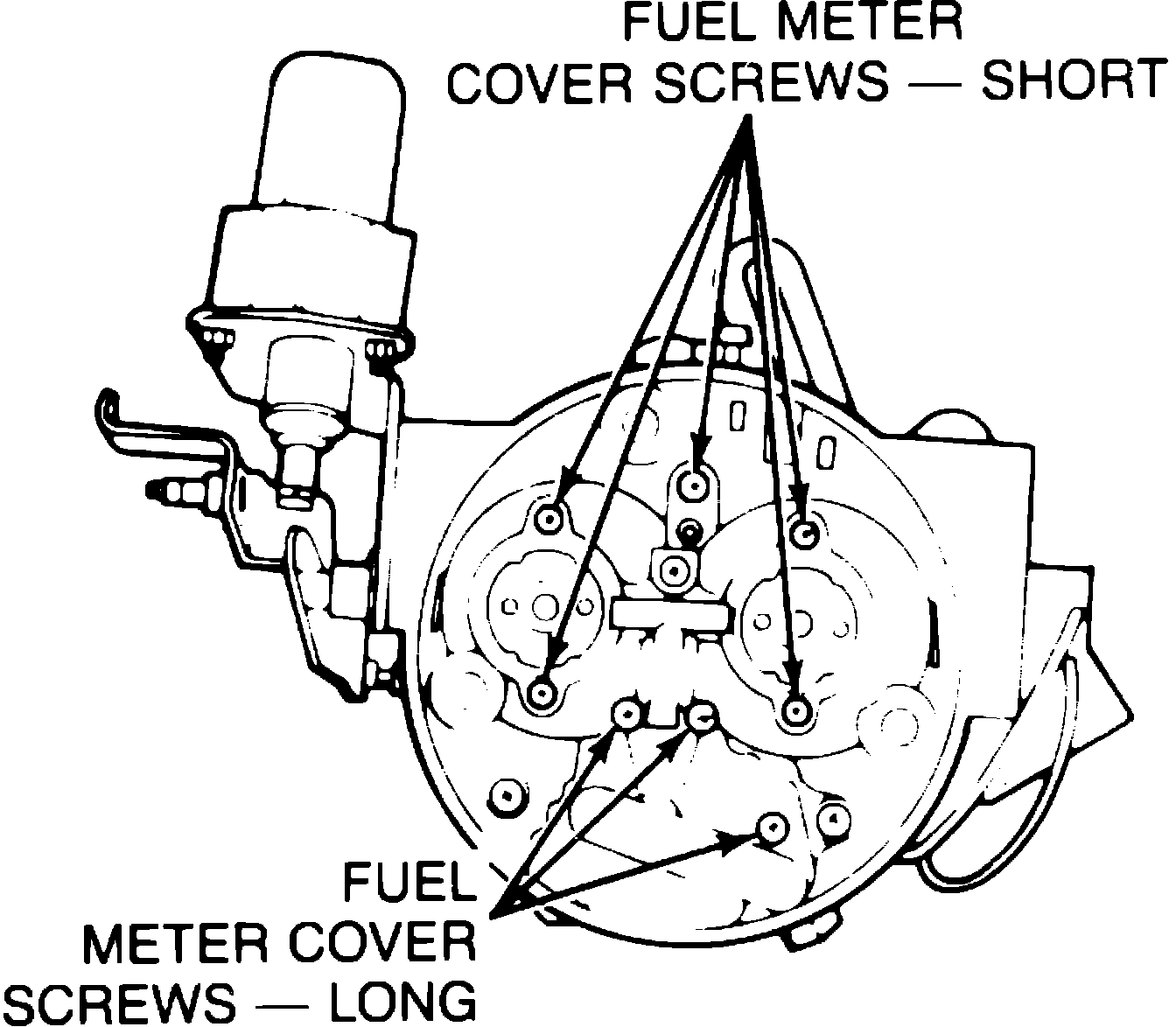

Fig. 102 Fuel meter cover replacement:

1. Remove air cleaner assembly, then disconnect injector electrical connectors.
2. Remove fuel meter cover attaching screws and the cover. Note location of four short screws, Fig. 102, for installation reference.
3. Reverse procedure to install, using new seal and gaskets.
