Engine Data Sensors & Vehicle Data Sensors
Engine Data Sensors & Vehicle Data Sensors

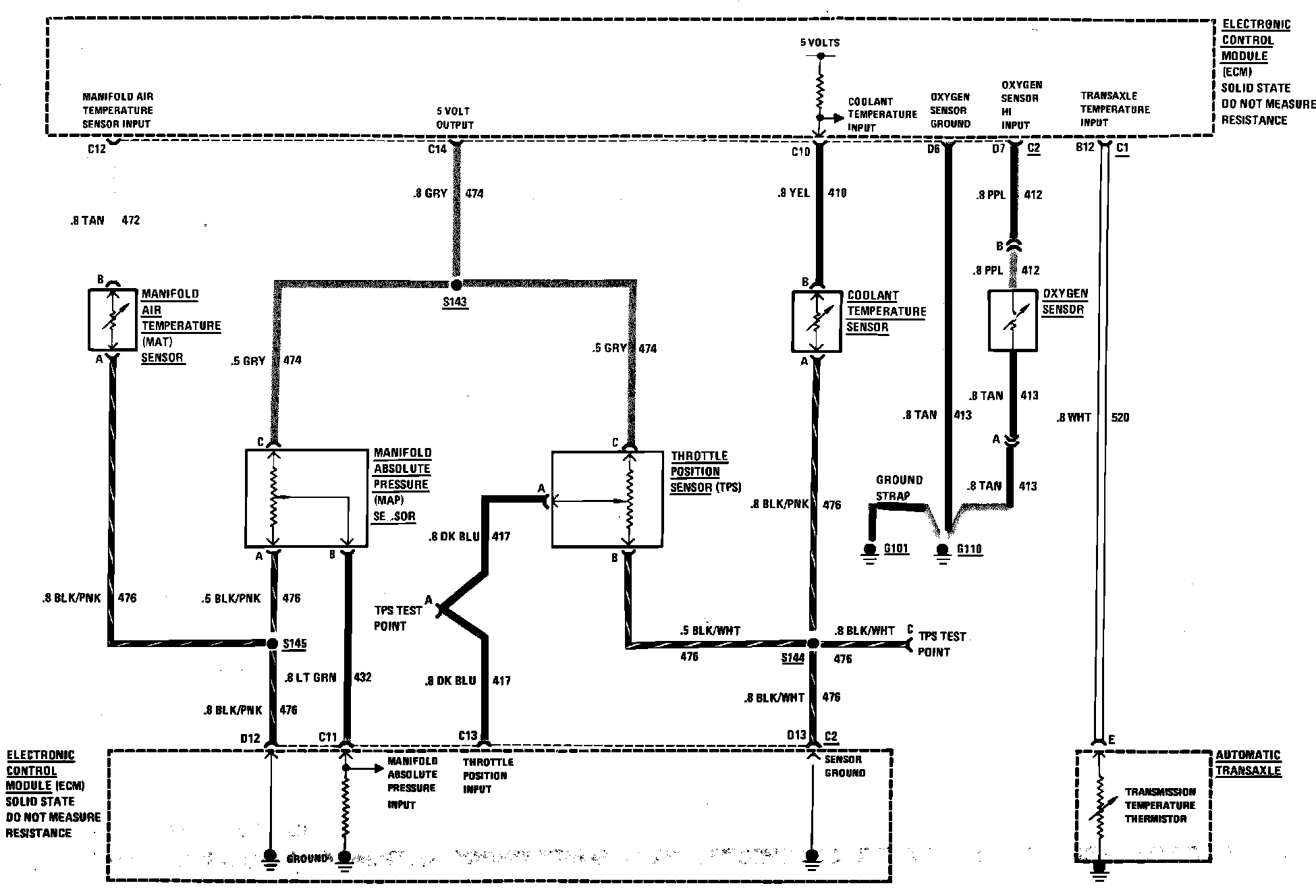

Digital Fuel Injection Engine Data Sensors Wiring Circuit:
