Home >> Cadillac >> 1987 >> DeVille V8-252 4.1L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 6, 7 & 8 >> Part 1 of 2

Part 1 of 2

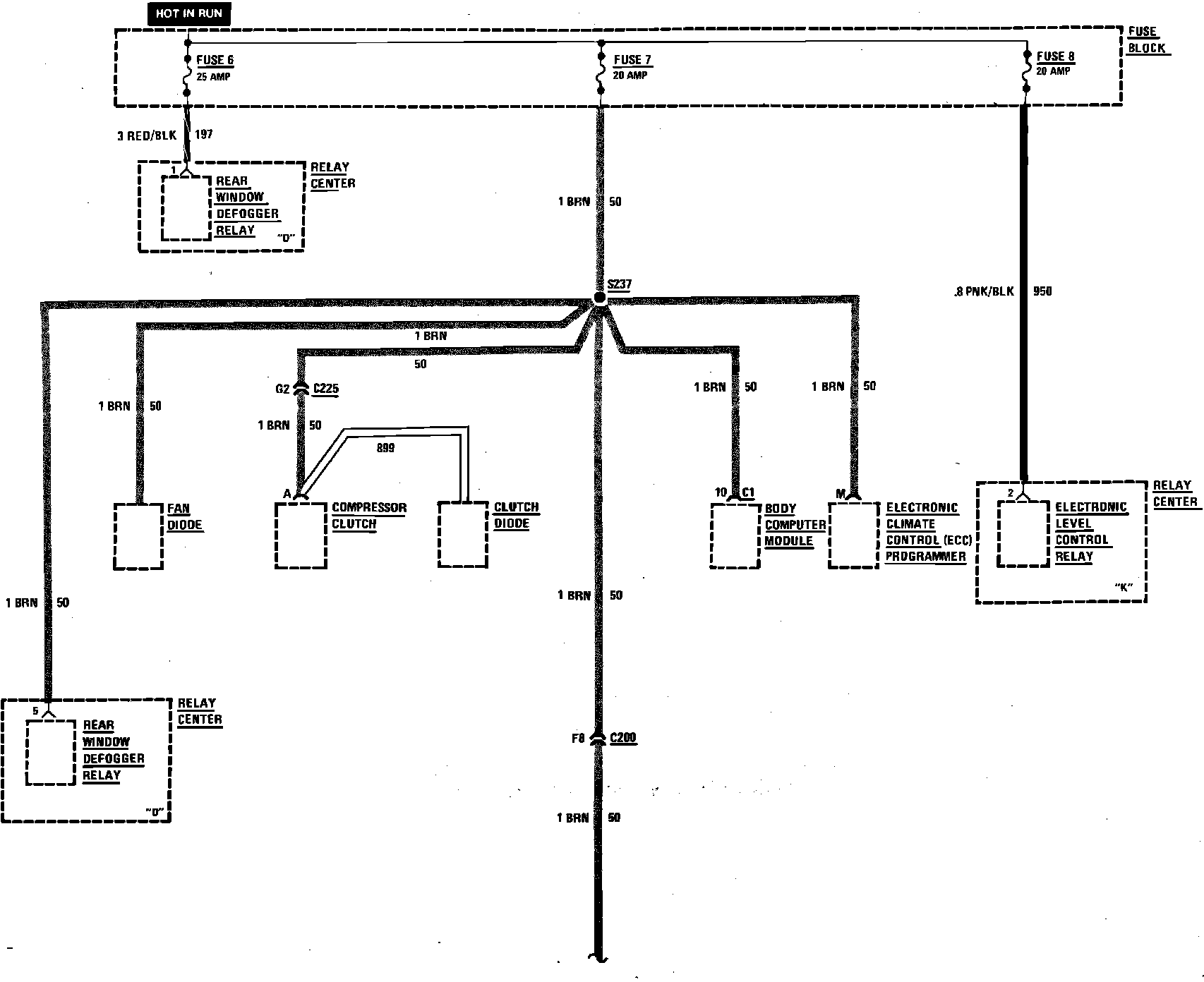

Fuse Block Details (Fuses 6, 7 & 8, Part 1 of 2):
