Cadillac
>>
1987
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

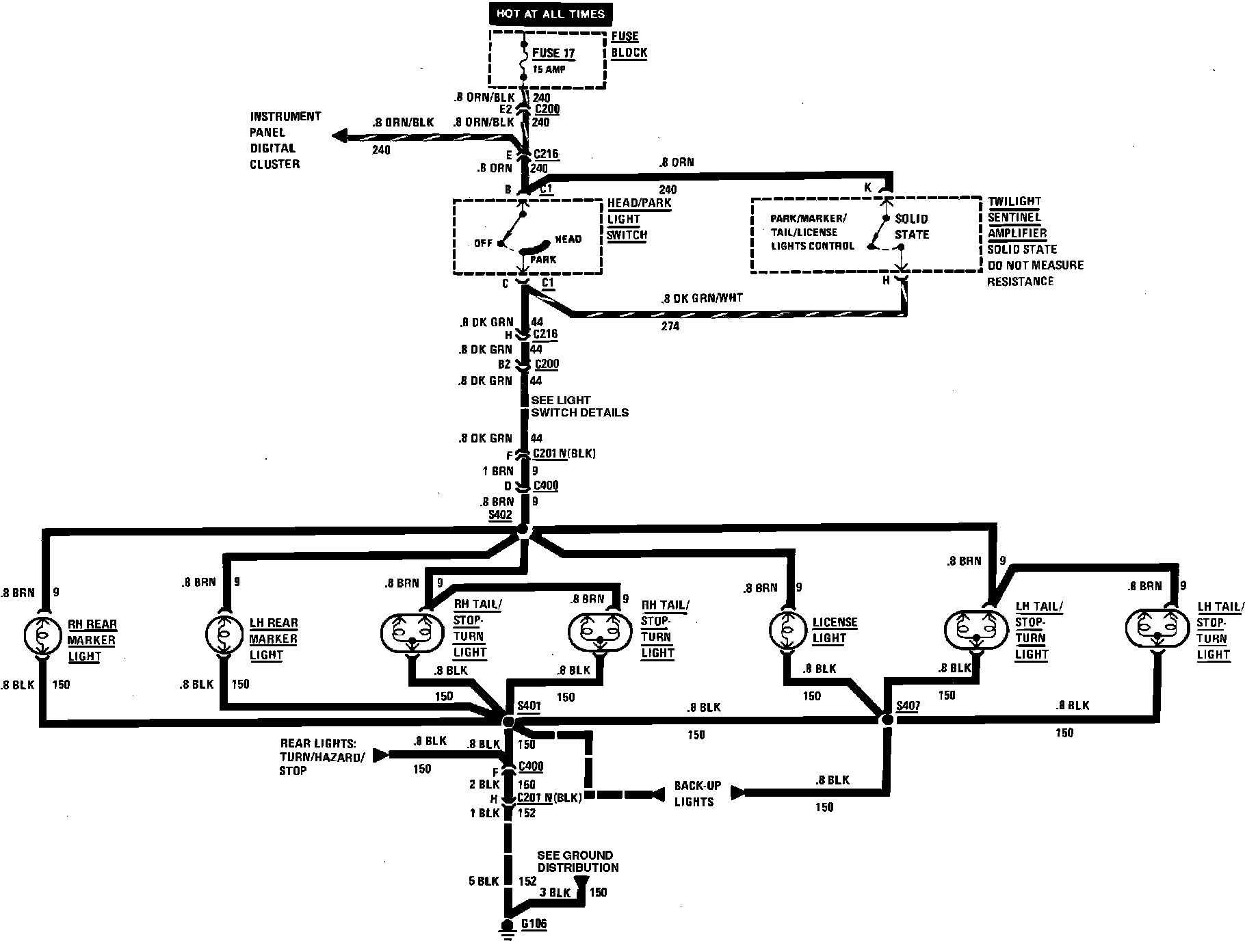

Exterior Lamps Wiring Circuit (Rear License, Marker & Tail):
