Home
>>
Cadillac
>>
1987
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Diagrams
>>
Electrical Diagrams
>>
Less Theft Deterrent System
Less Theft Deterrent System

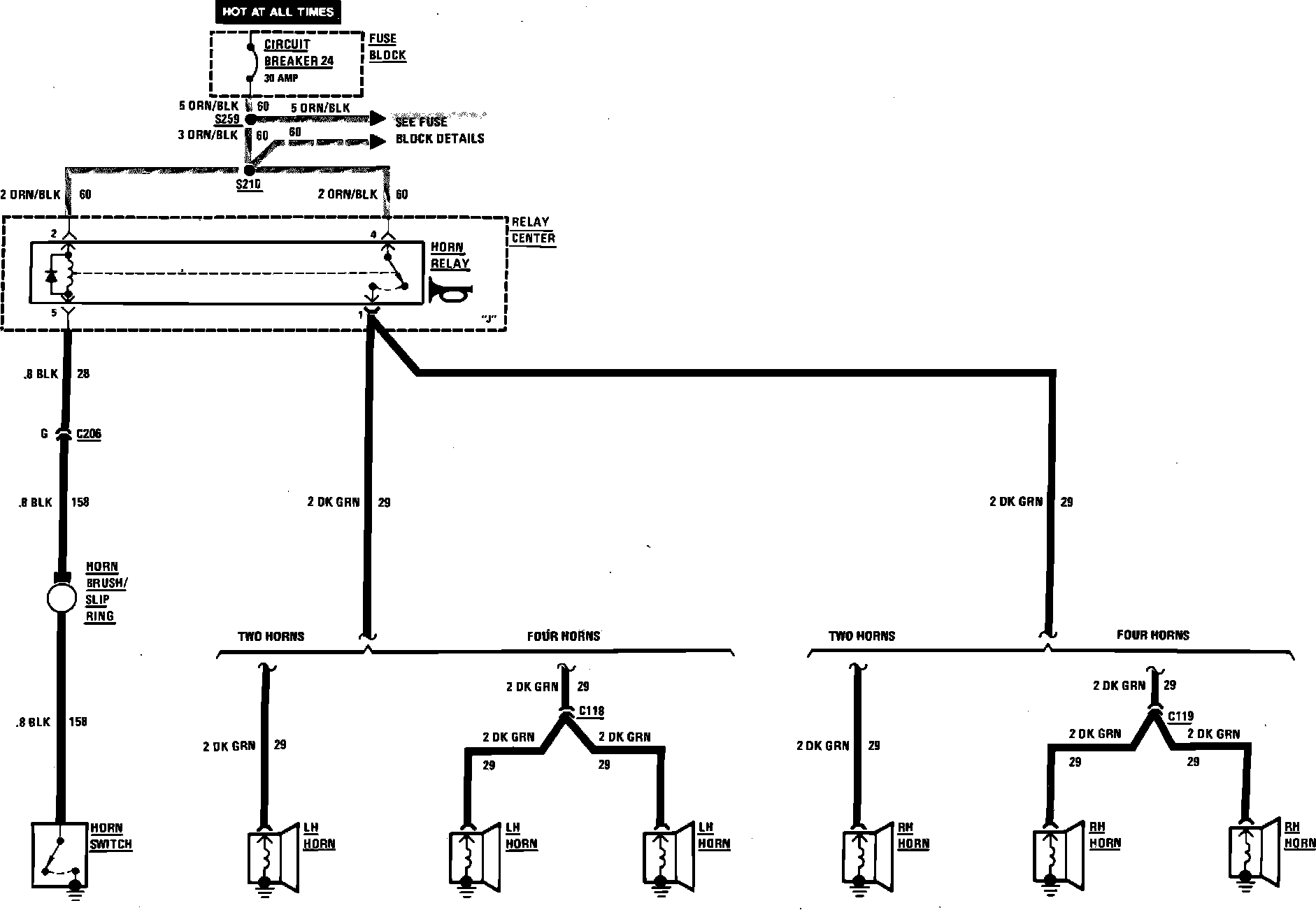

Horn System Wiring Circuit. Less Theft Deterrent System:
