Instrument Panel Cluster Replacement

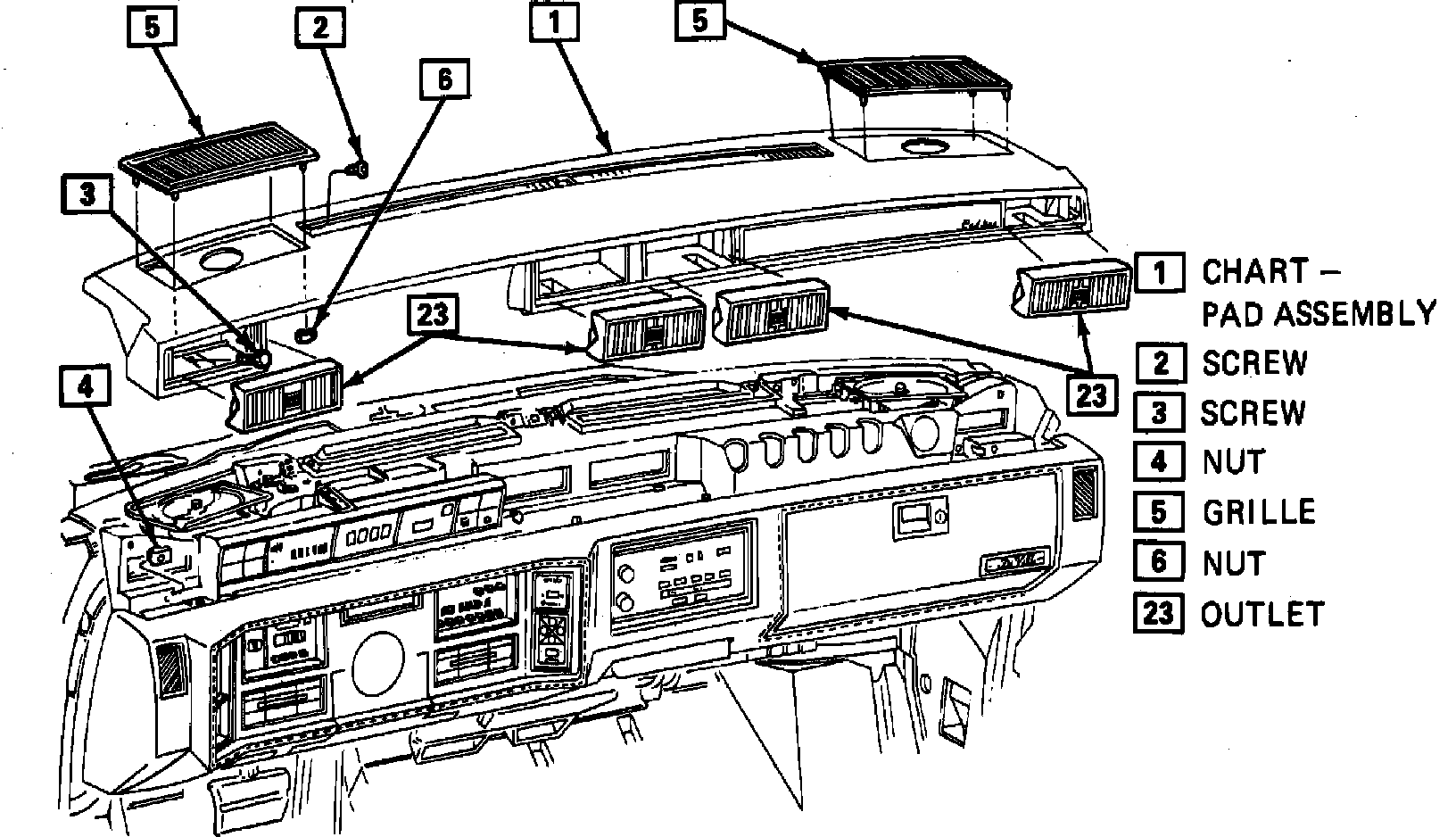

Fig. 15 Upper trim pad assembly. DeVille & Fleetwood:

Fig. 16 Cluster removal. DeVille & Fleetwood:

CADILLAC
1. Disconnect battery ground cable.
2. Remove upper trim pad as follows:
a. Remove A/C outlets from upper trim pad.
b. Remove screws locations 2 and 3 from both side of pad, Fig. 15.
c. Remove upper trim pad.
3. Remove screw (88) and plate (87), Fig. 16.
4. Remove cluster attaching screws.
5. Disconnect wiring from rear of cluster and remove cluster from vehicle.
6. Reverse procedure to install.
