Home >> Cadillac >> 1987 >> DeVille V8-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat Wiring Circuit >> Less Memory Seats, Part 1 of 2

Less Memory Seats, Part 1 of 2

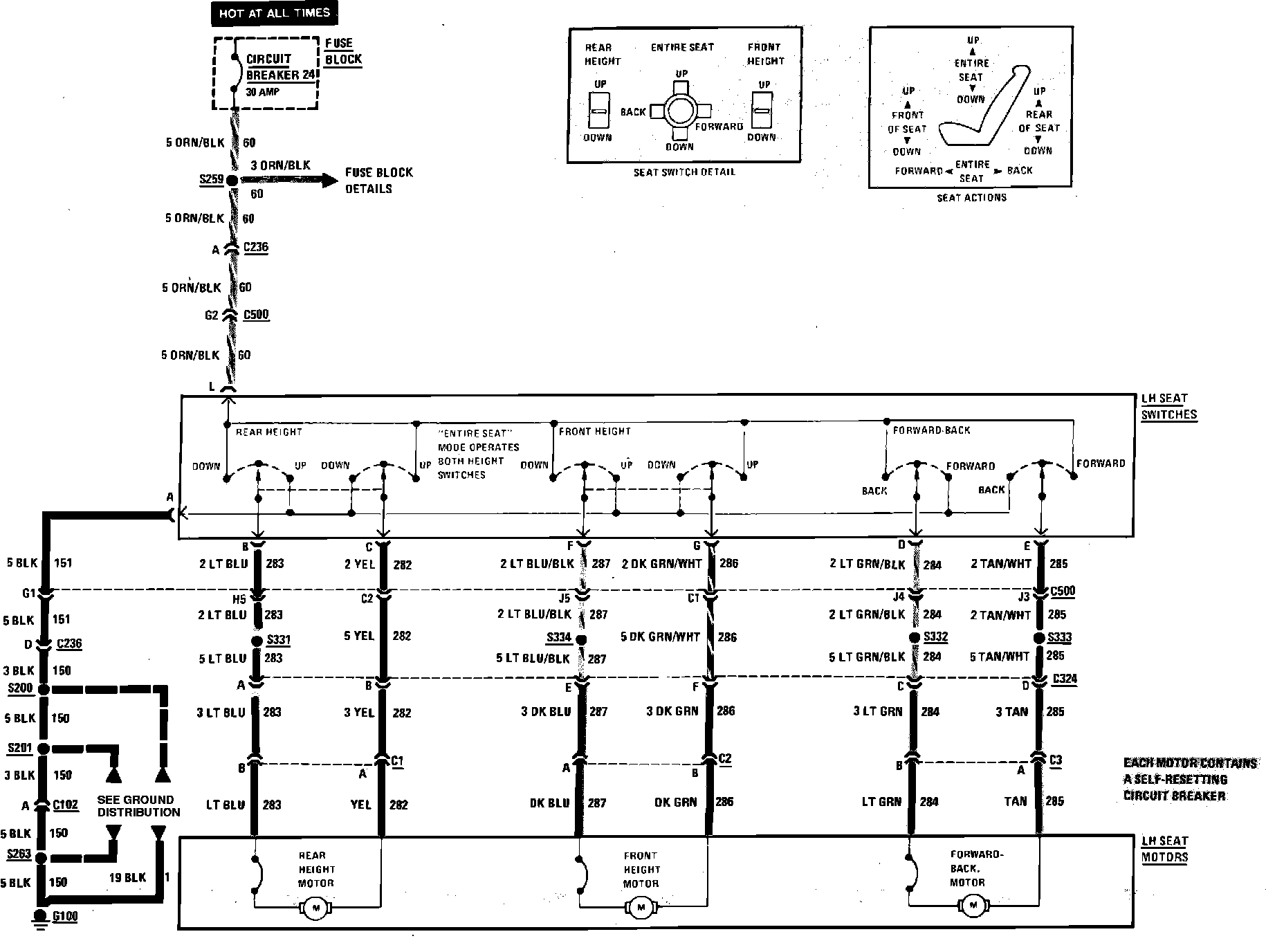

Power Seats Wiring Circuit Less Memory Seats:
