Brake Warning Indicator
>>
Antilock Brake Indicator
Antilock Brake Indicator

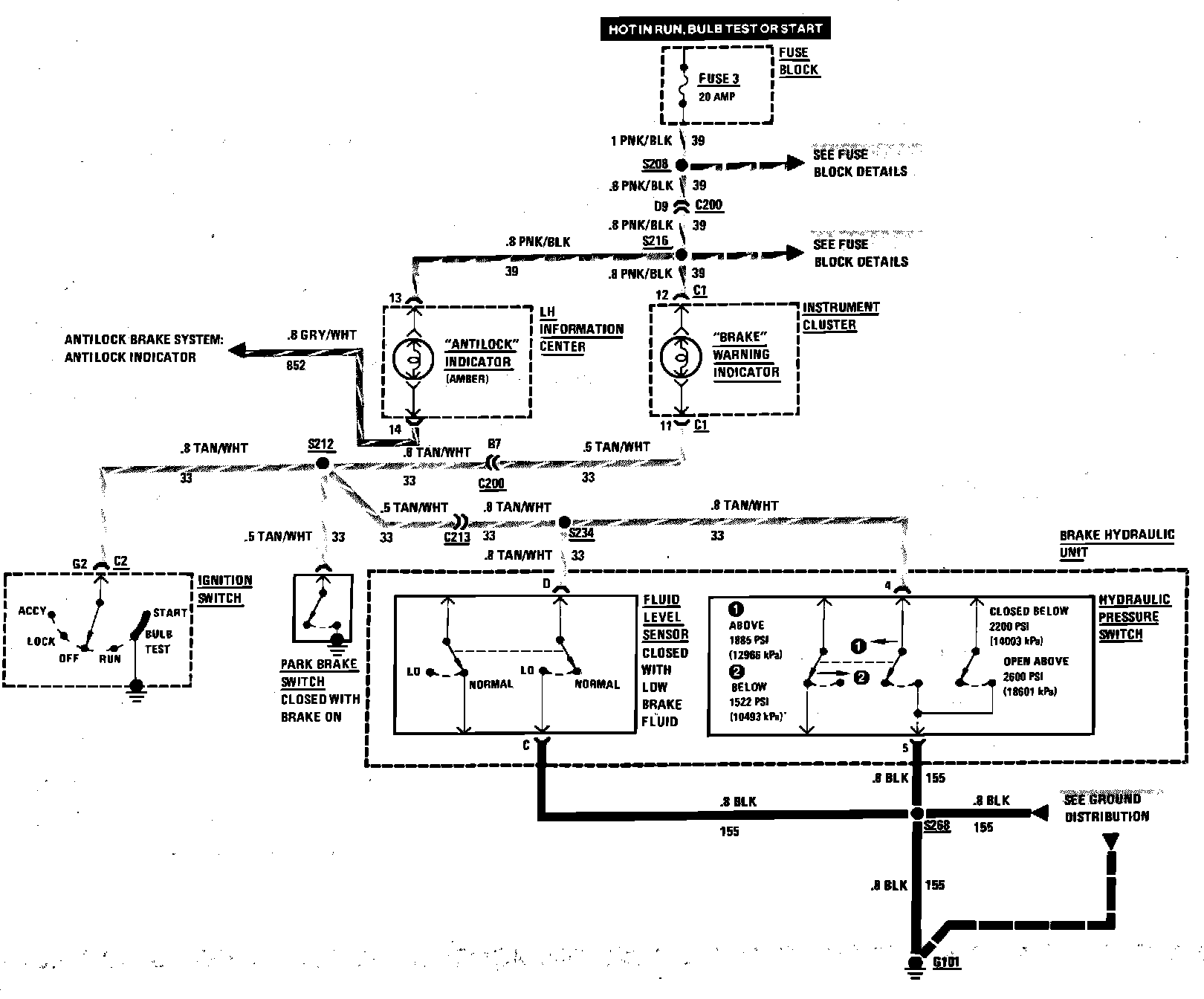

Anti-Lock Brake System Brake Indicator Wiring Circuit:
