License Plate Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

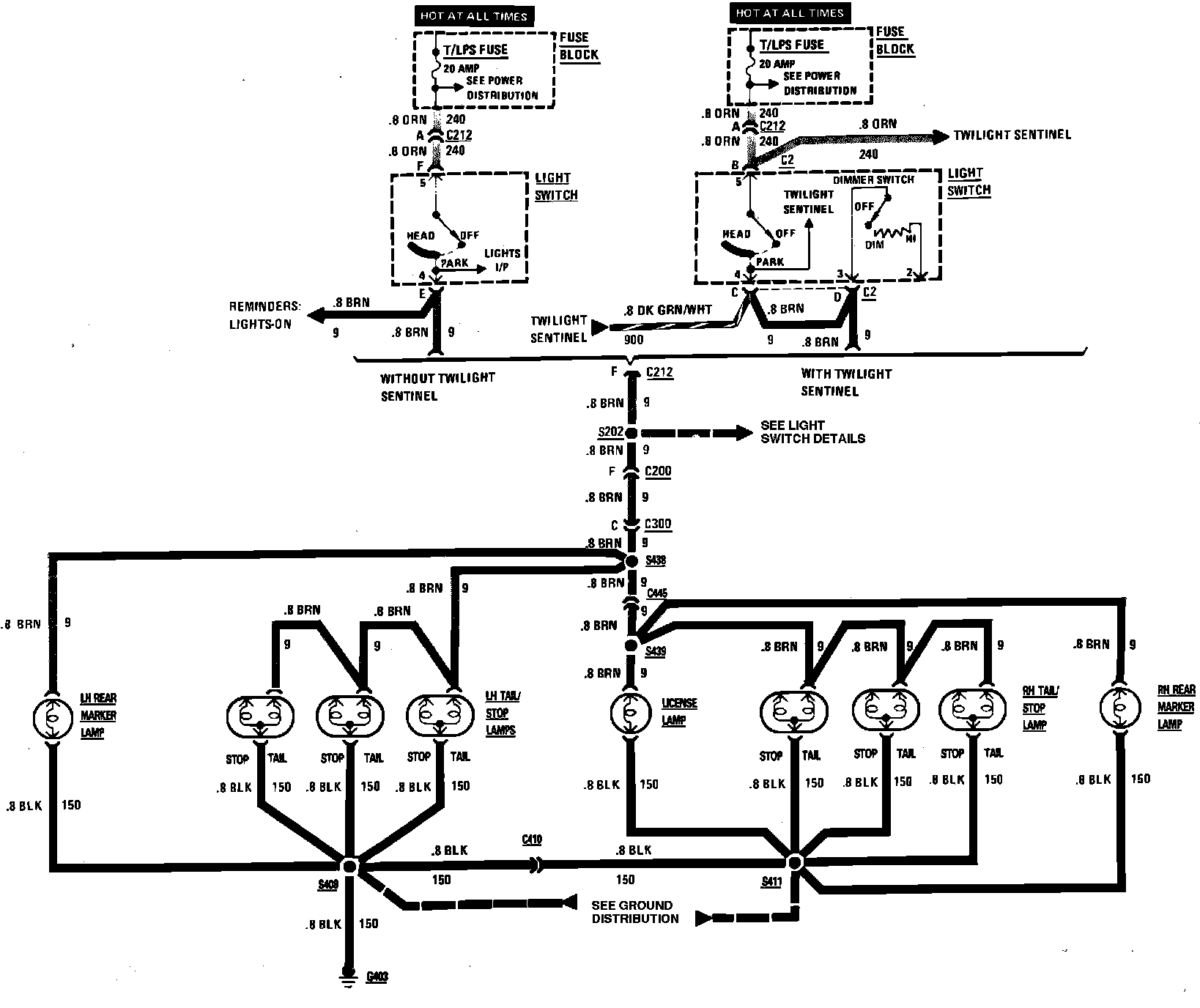

Fig. 80 Exterior Lamp Wiring Circuit (License, Rear Marker & Tail):
