Brake Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

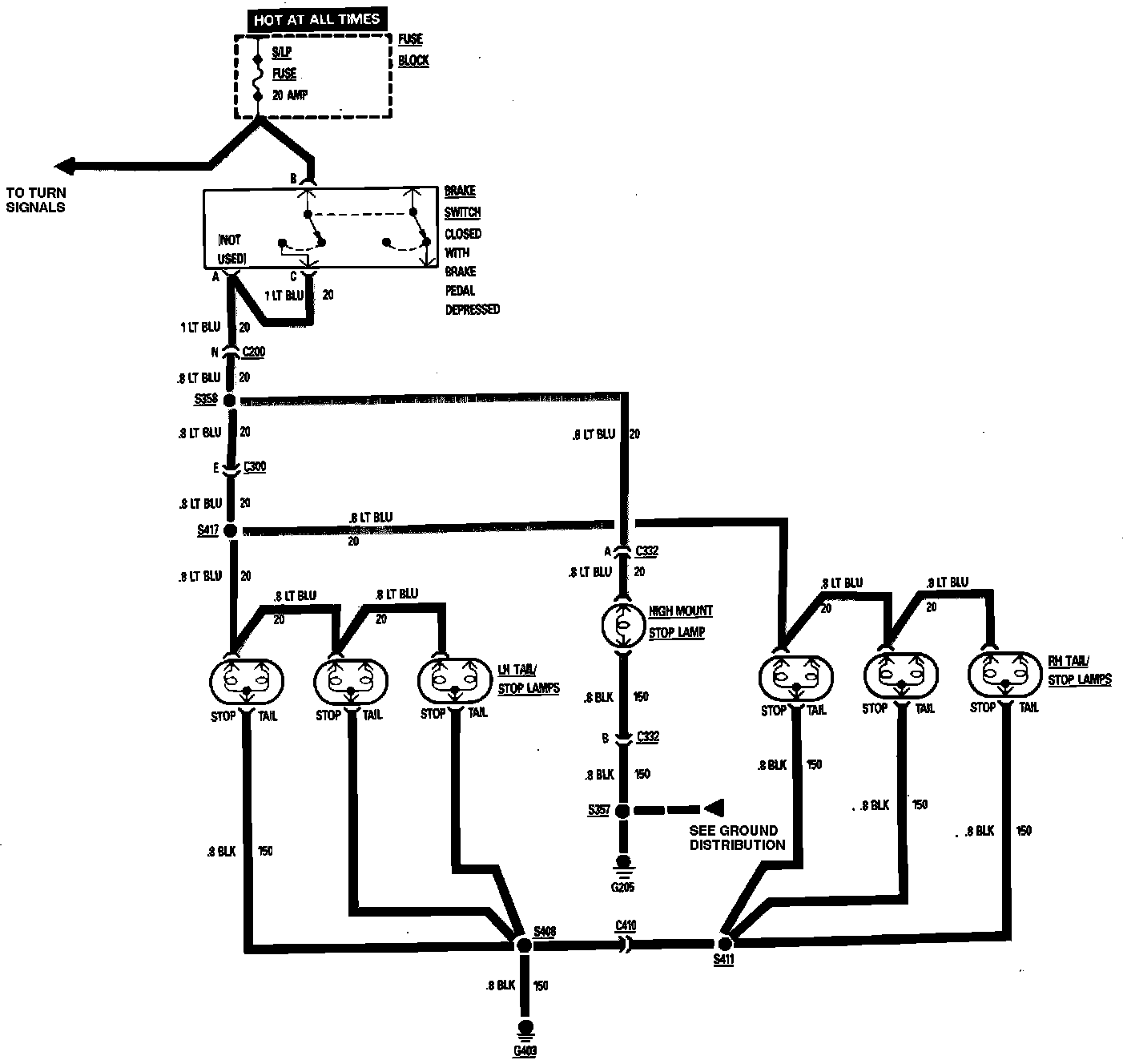

Fig. 73 Exterior Lamp Wiring Circuit (High Mount Stop & Stop):
