AM/FM/Cellular Antenna - Parts Availability

91cadillac01

NO.: 91-I-24


DATE: Jan. 1991


GROUP: 9

CORP. NO.: 019016


SUBJECT: TRI-BAND (AM/FM/CELLULAR MOBILE TELEPHONE) ANTENNA SERVICE PARTS AVAILABILITY

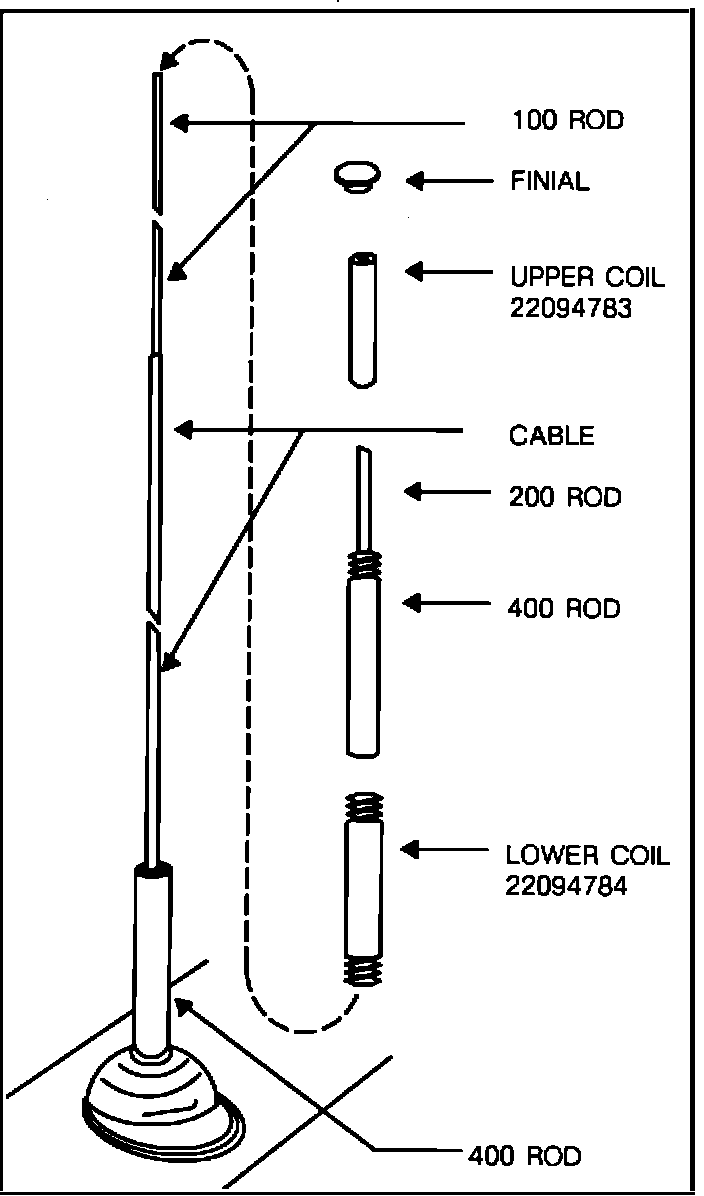

Figure 1 - Antenna Components:

Component parts are now available for repairing GM tri-band (AM/FM/cellular telephone) telescoping antennas. These antennas previously required replacement as a unit when the antenna had failed at the upper or lower load coil due to impact. Refer to Figure 1.


Applicable models with factory phone provisions are:


1987-1990 Cadillac Allantes

1988-1989 Cadillac Eldorados and Sevilles

1988-1989 Buick Rivieras

Upper Load Coil P/N: 22094783

Lower Load Coil P/N: 22094784

Installation instructions are included with these parts.


Parts are currently available from GMSPO.

WARRANTY INFOIRMATION VEHICLE SERIES

Operation
Operation Description Number C D E J K V

Power, Loading Coil, Antenna R0435
Components - Replace


Upper: .3 .3 .3
Lower: .5 .5 .5
Both: .7 .7 .7
