Cadillac
>>
1987
>>
Allante V8-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Center Mounted Brake Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

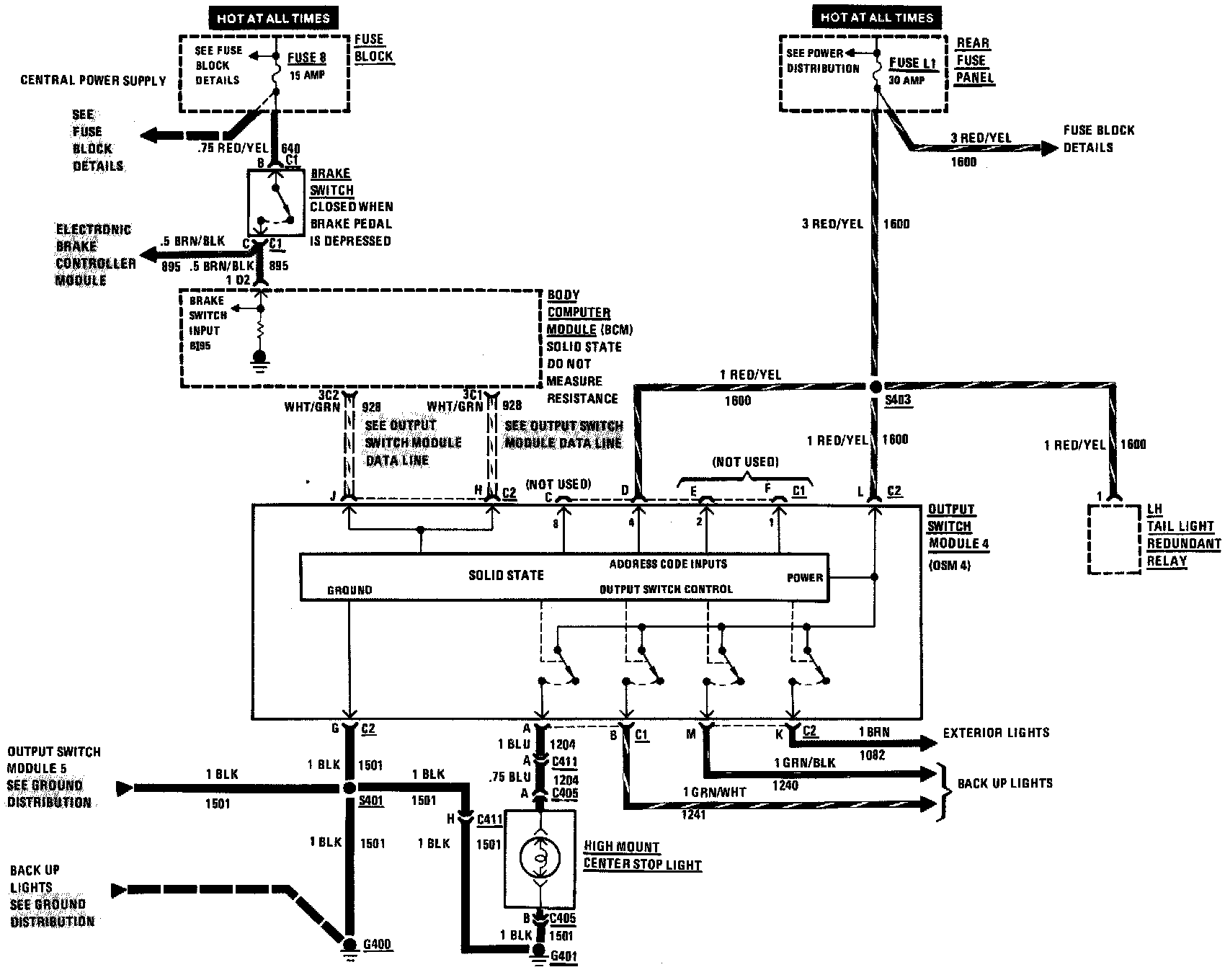

High Mount Center Stop Light:
