Electrical Diagrams

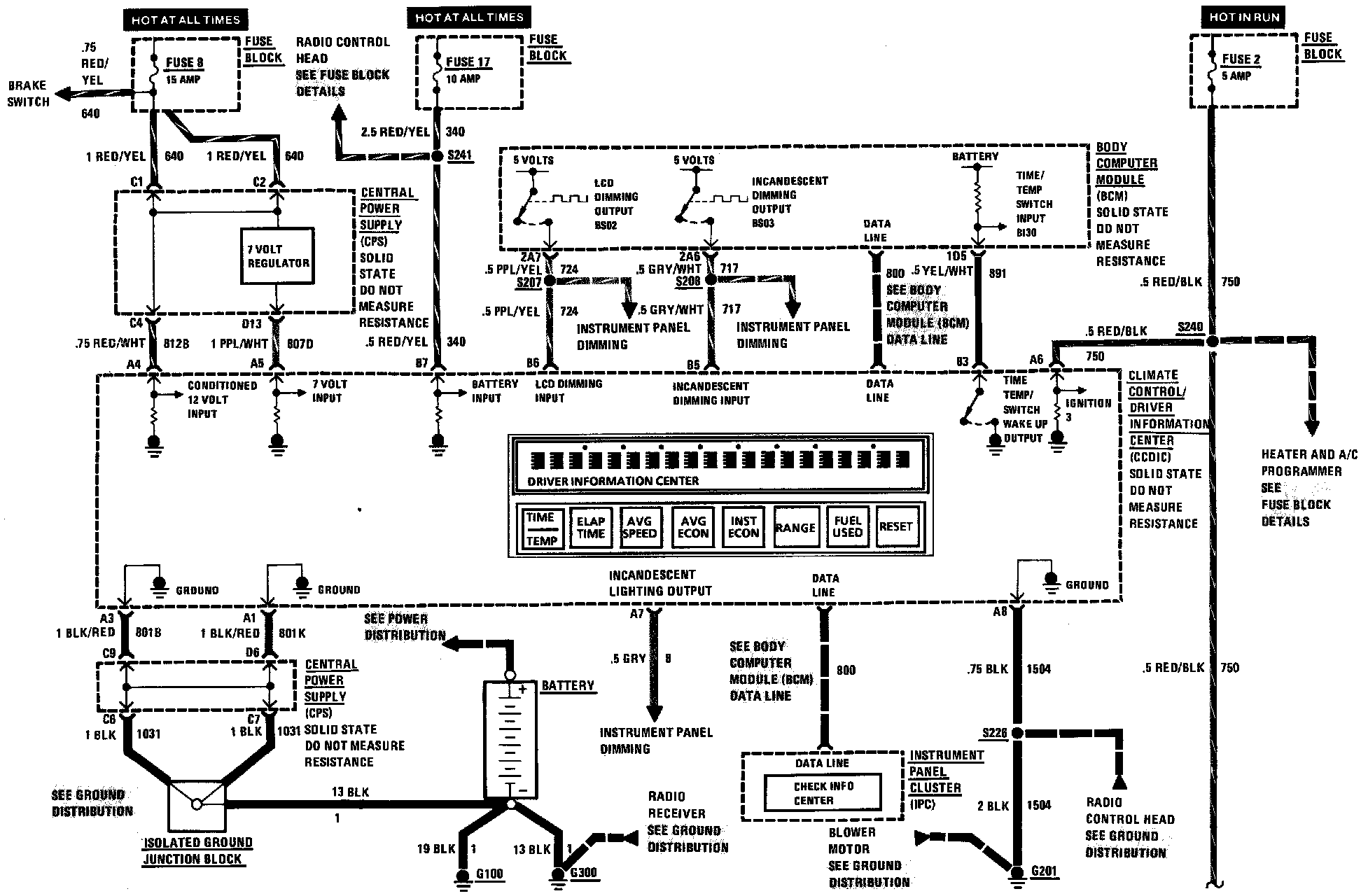

Driver Information Center (DIC) (Part 1 Of 2):

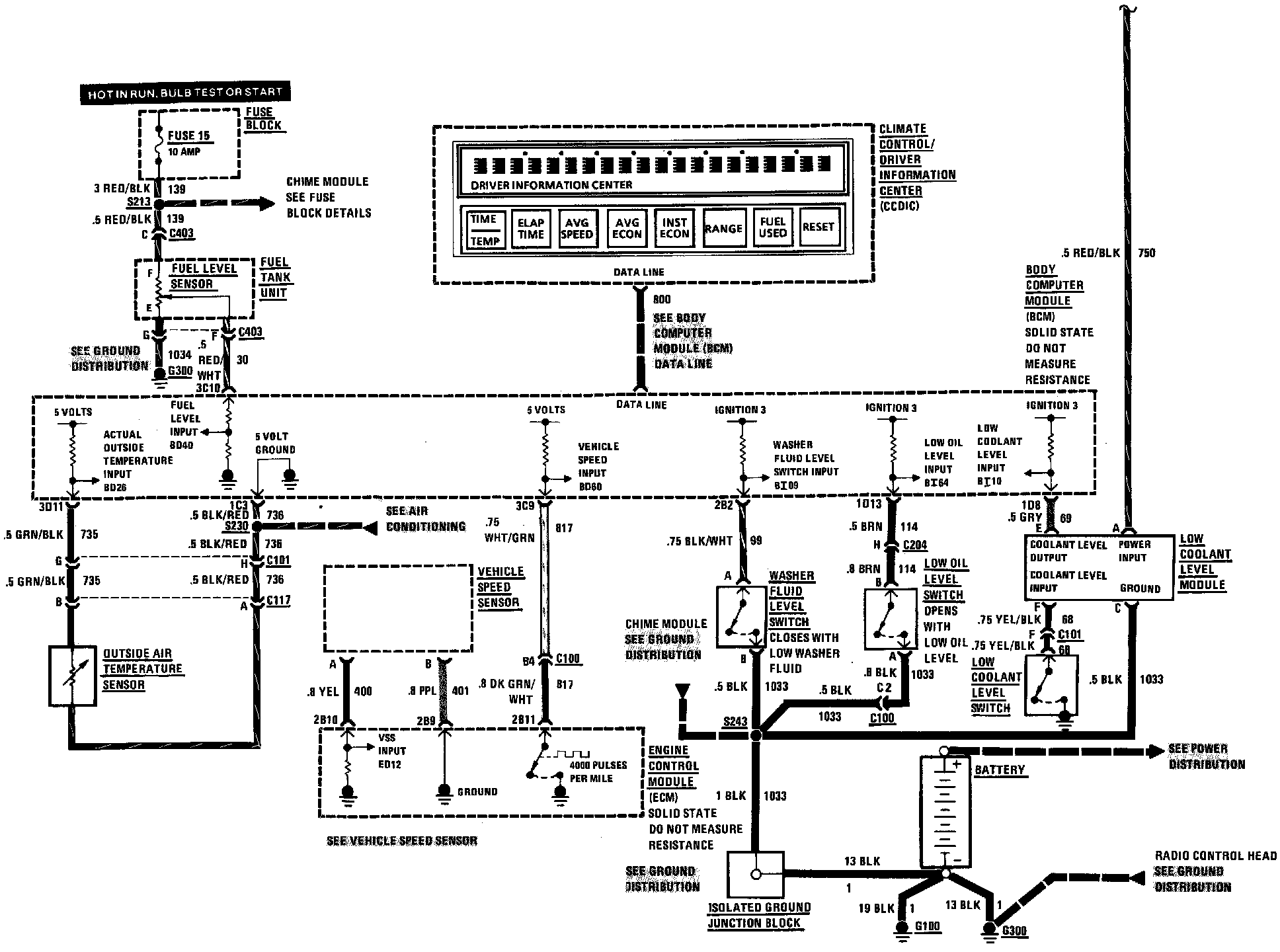

Driver Information Center (DIC) (Part 2 Of 2):
