Cadillac
>>
1987
>>
Allante V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Dimming Controls
Dimming Controls

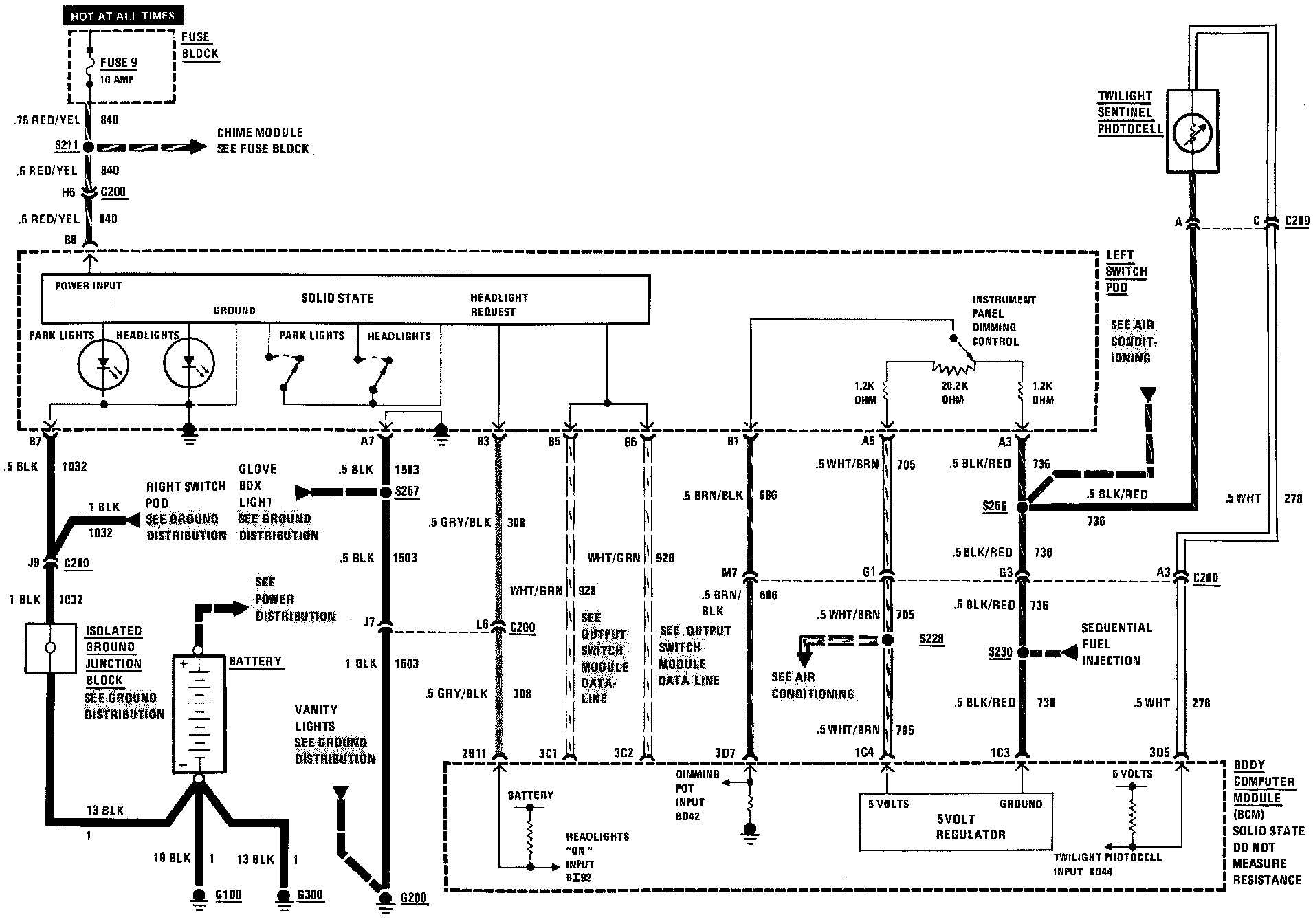

Instrument Panel - Dimming Controls:
