Cadillac
>>
1987
>>
Allante V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

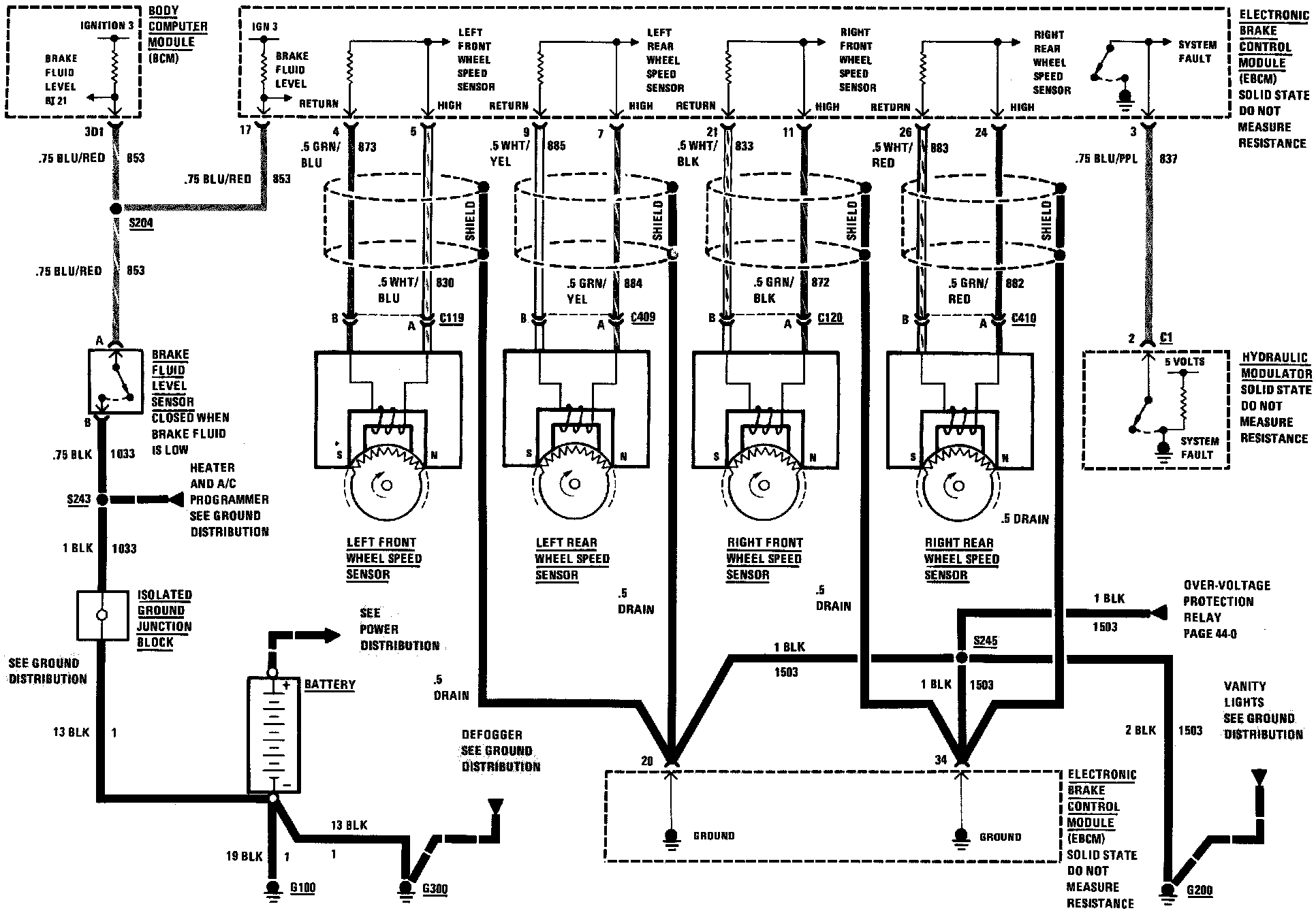

System Wiring Diagrams
>>
ABS Sensors
ABS Sensors
ABS Sensors:
