Home
>>
Cadillac
>>
1987
>>
Allante V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>

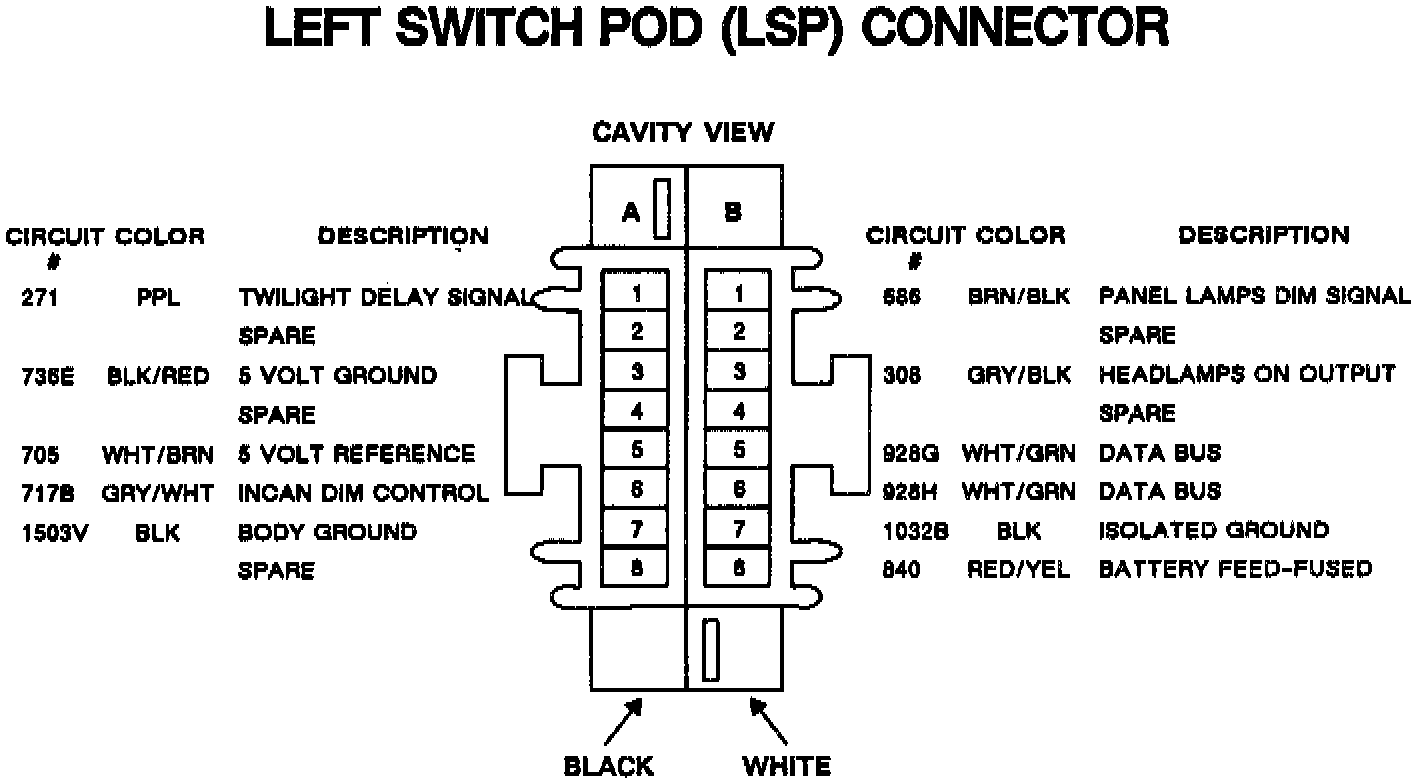

Left Switch Pod (LSP) Connector
Left Switch Pod (LSP) Connector
