Cadillac
>>
1987
>>
Allante V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Dash to IP Cluster Interconnect

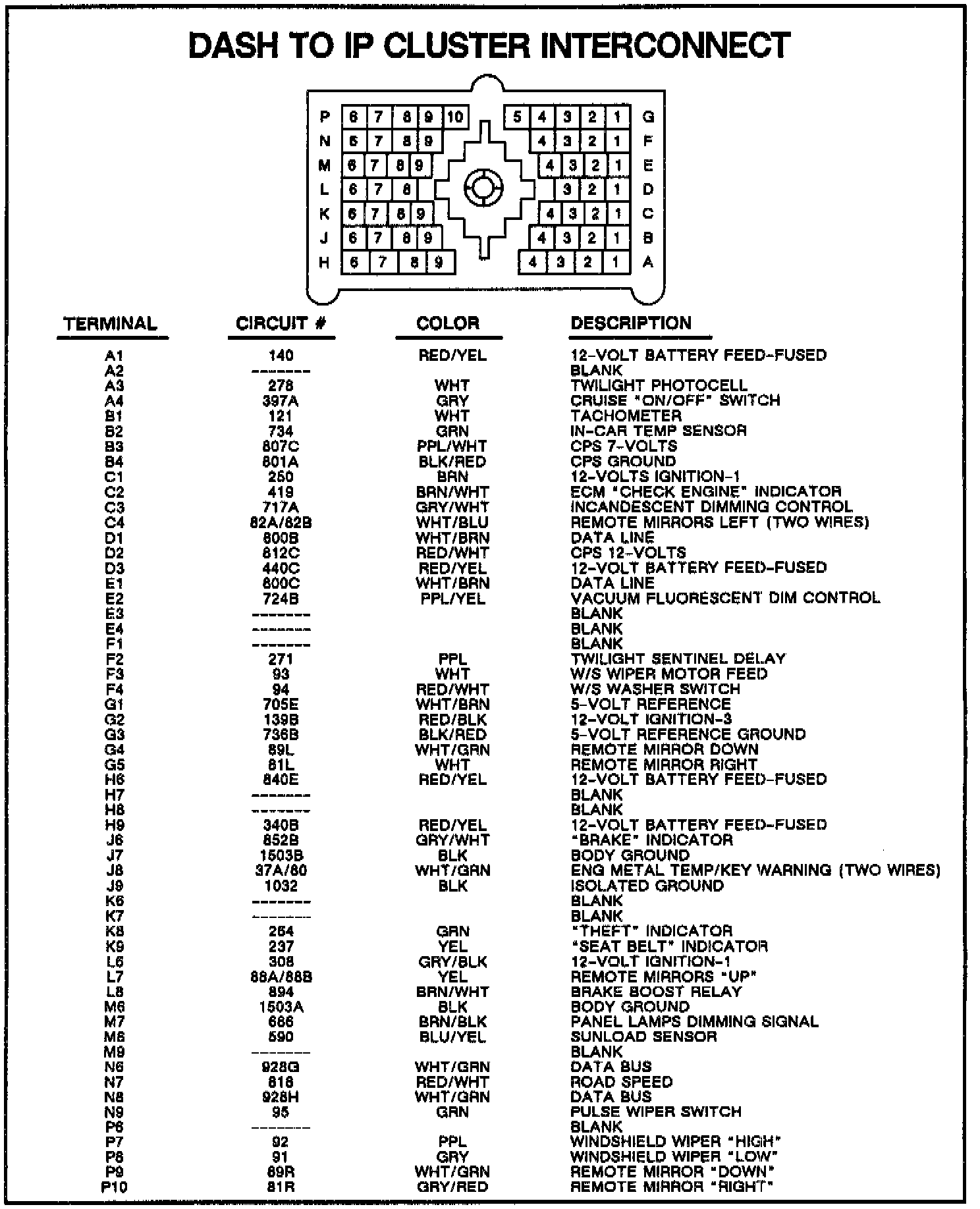

Dash to IP Cluster Interconnect
