Cadillac
>>
1987
>>
Allante V8-252 4.1L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
>>
System Power Circuits
>>

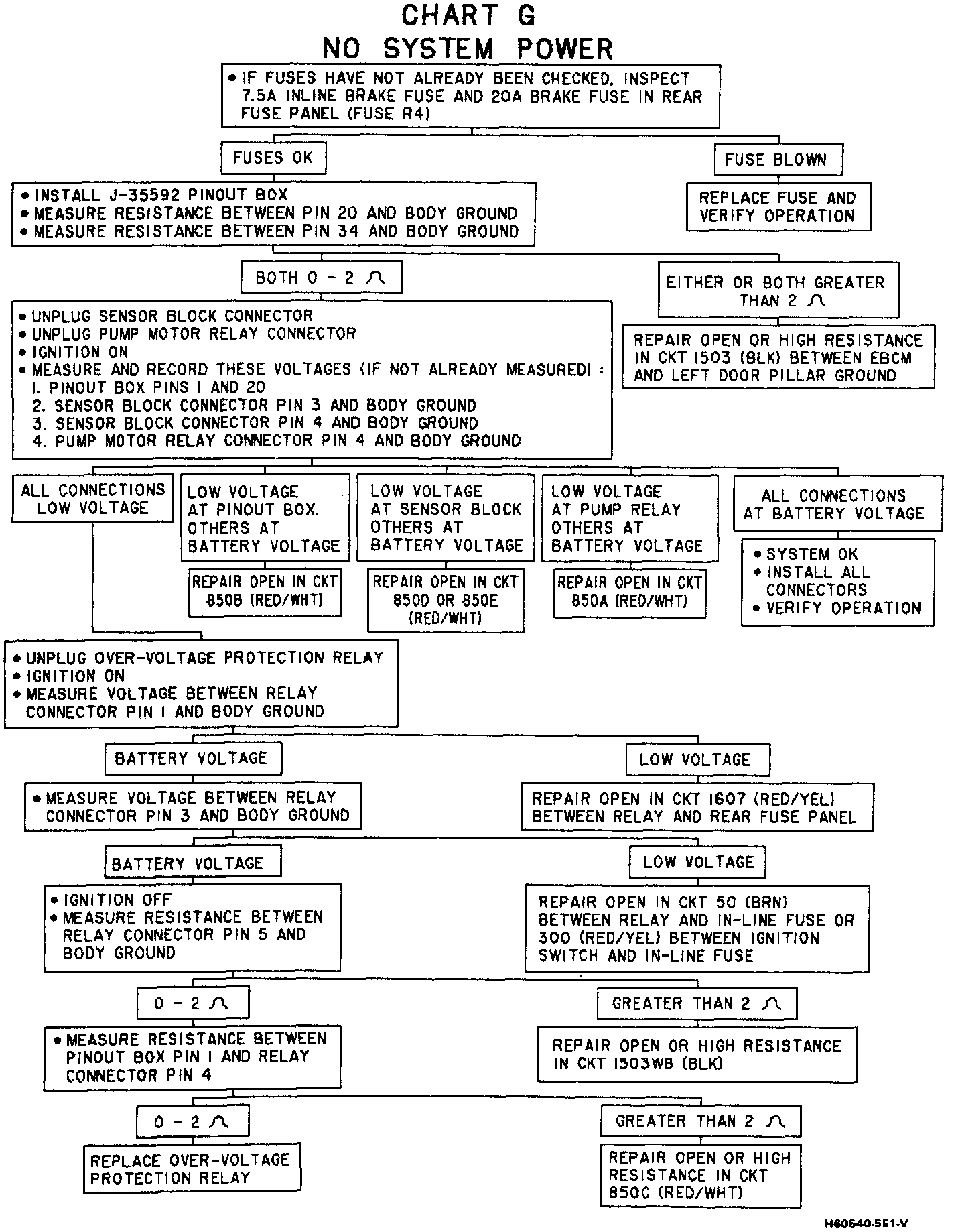

Chart G No System Power
Chart G No System Power
