Home
>>
Cadillac
>>
1986
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Odometer
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

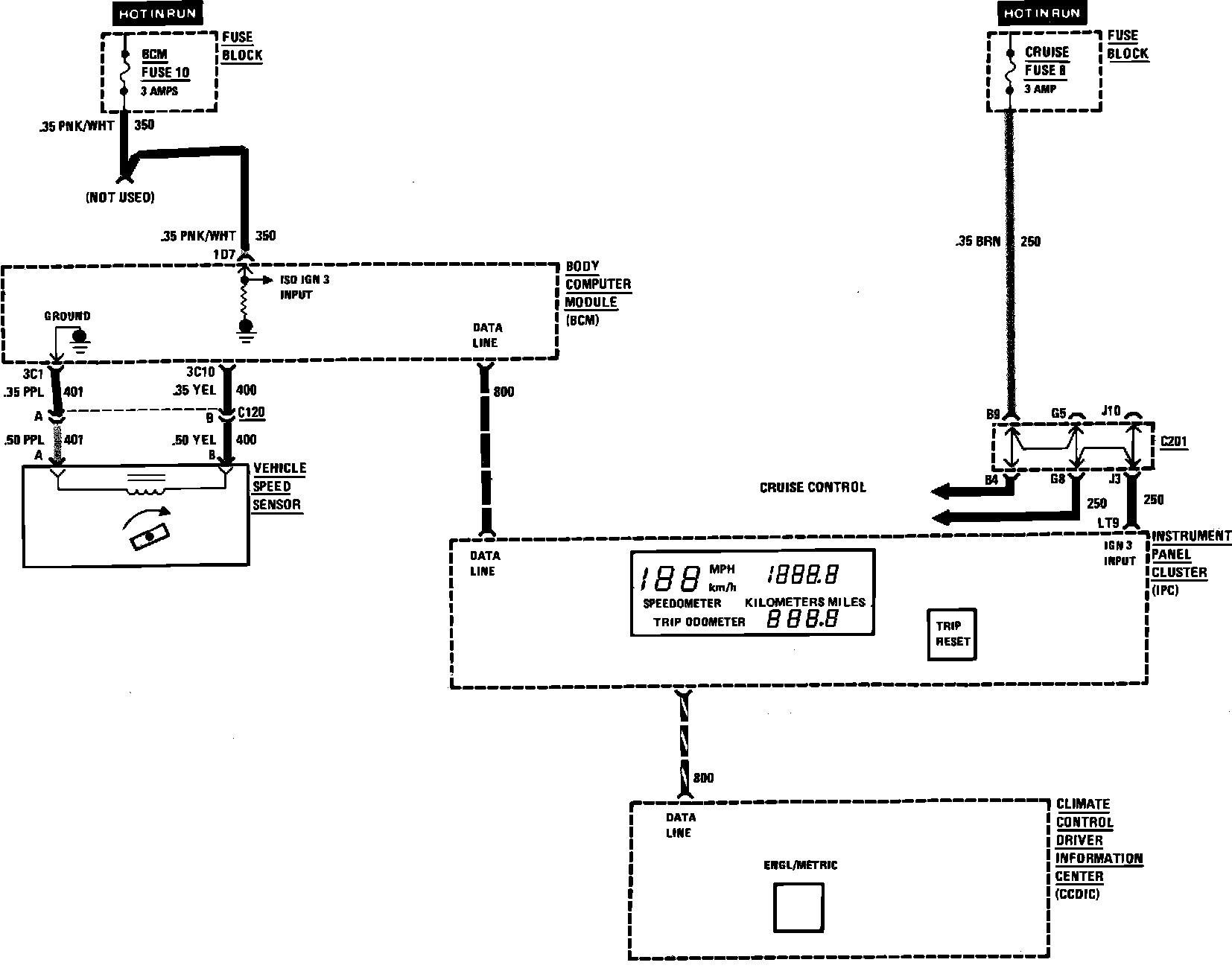

Odometer, Speedometer & Trip Odometer Wiring Circuit:
