Trunk / Liftgate Solenoid
>>
(Late Production)
(Late Production)

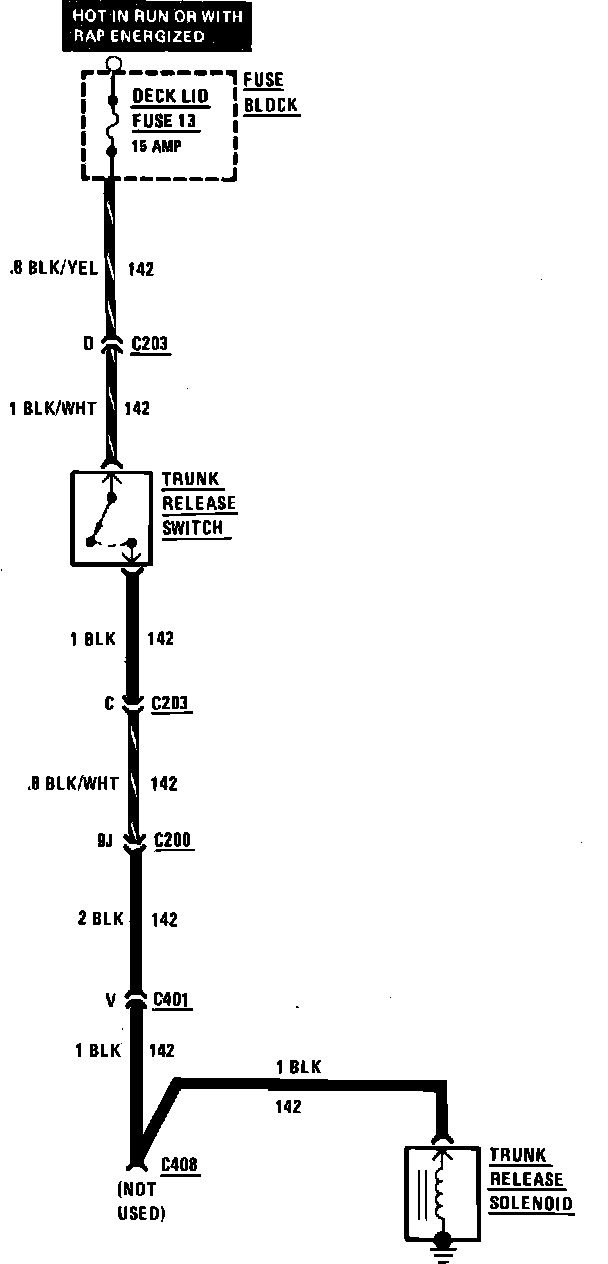

Trunk Release Wiring Circuit (Late Production):
