Lighting and Horns
>>
System Diagram
>>
Interior Lamps
>>

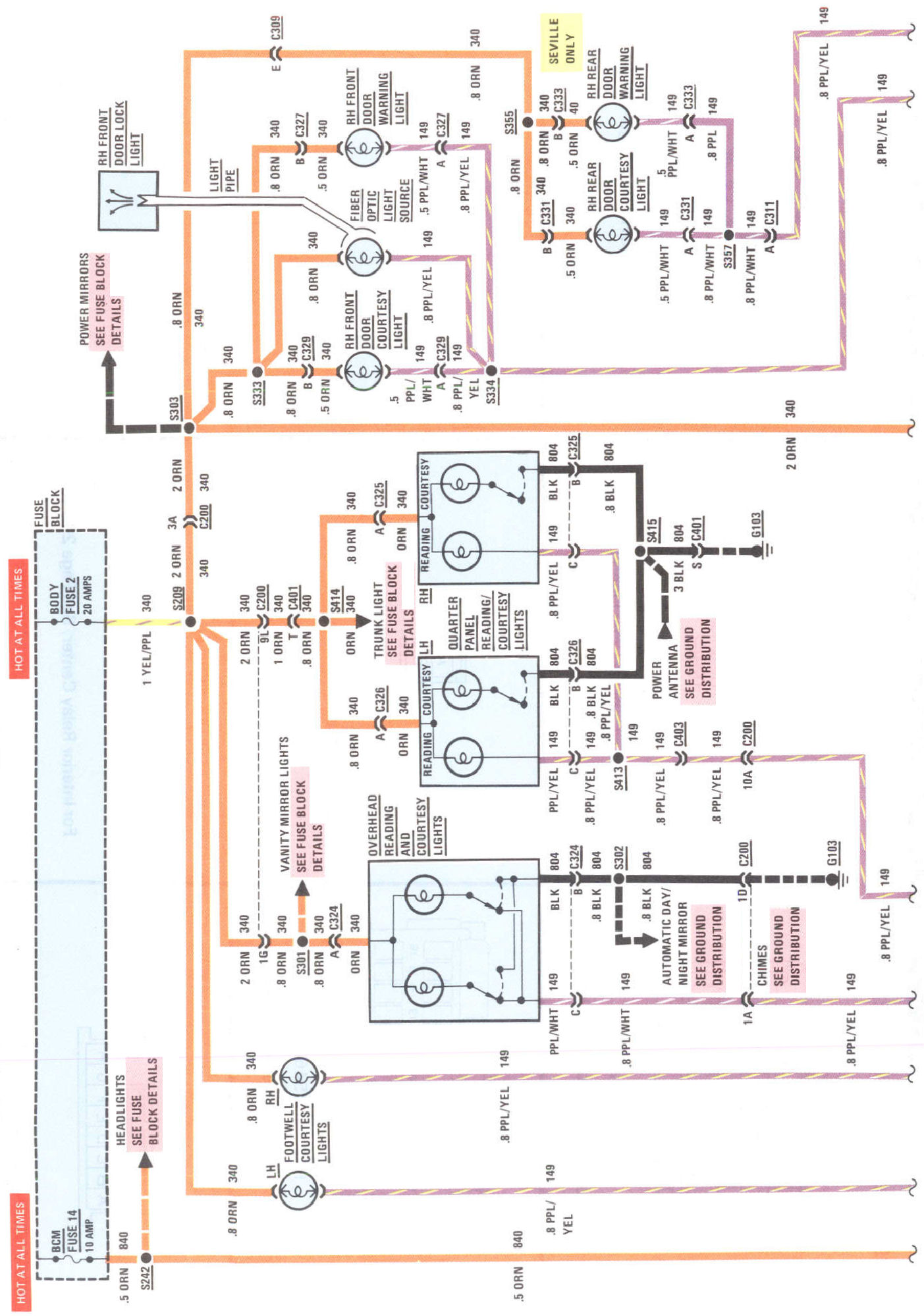

Illuminated Entry System
Illuminated Entry System
Footwell / Overhead / Rear Quarter / Reading / Door
