Cadillac
>>
1986
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lamps
>>

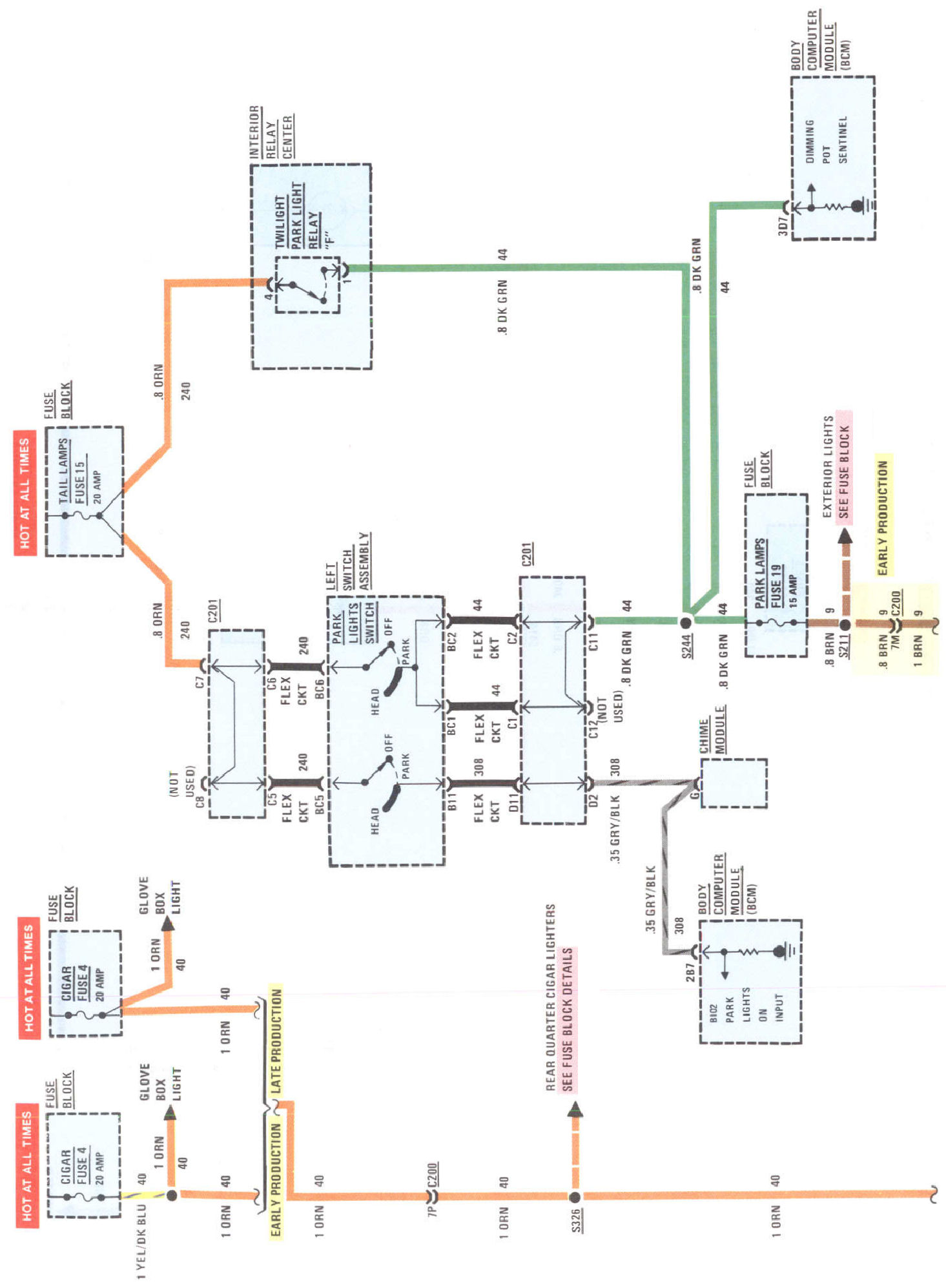

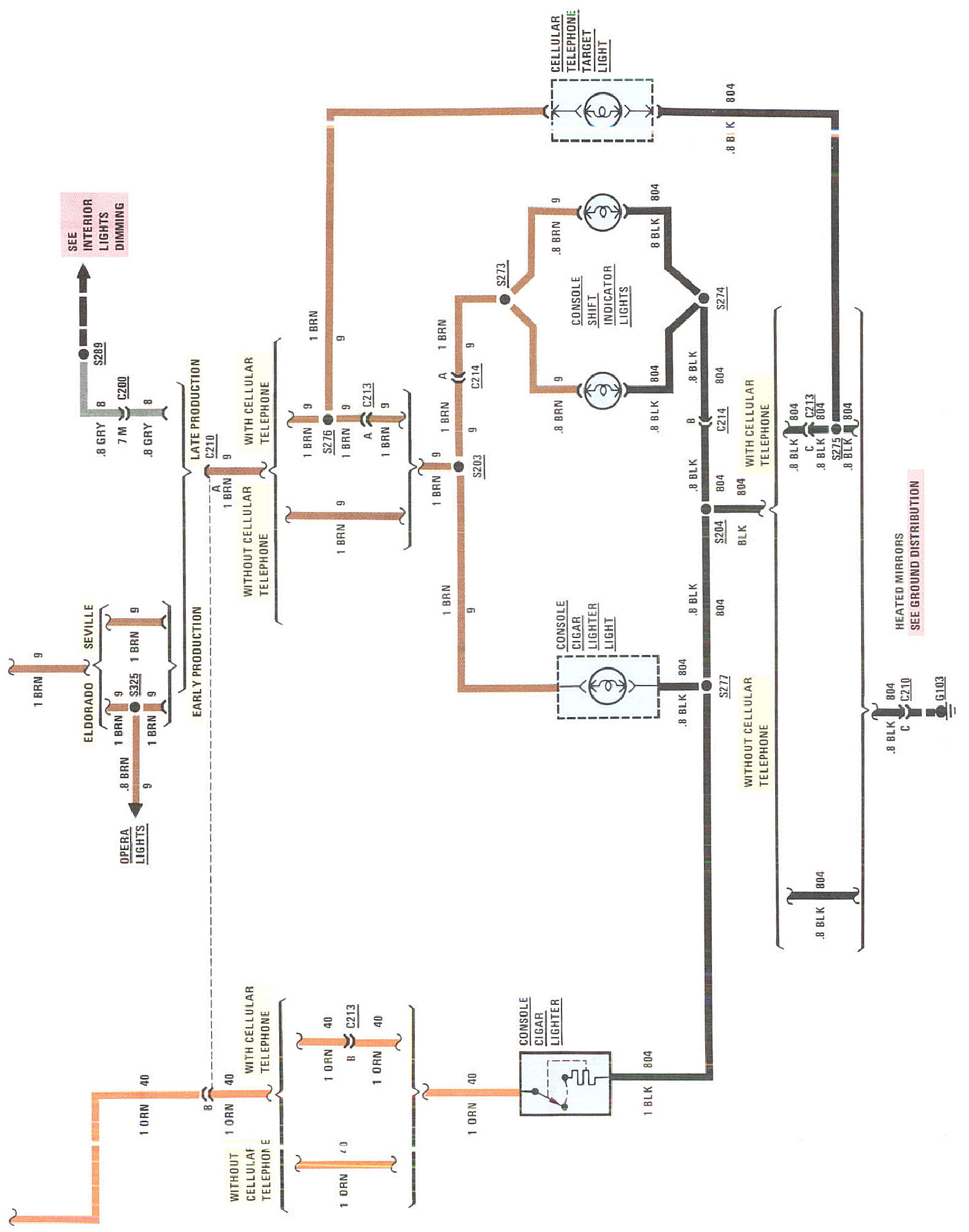

Console Lights/Console Cigar Lighter
Console Lights/Console Cigar Lighter
Console Lights / Console Cigar Lighter
