Cadillac
>>
1986
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Door
>>
Early Production
Early Production

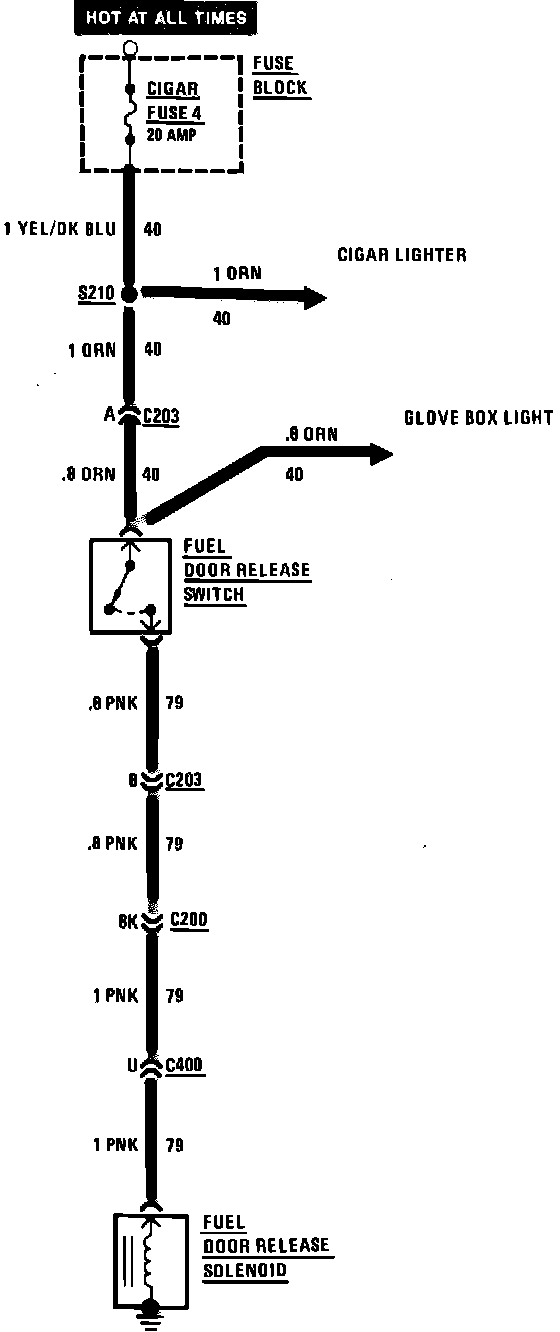

Fuel Door Release Wiring Circuit (Early Production):
