Home
>>
Cadillac
>>
1986
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Trunk / Liftgate Motor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

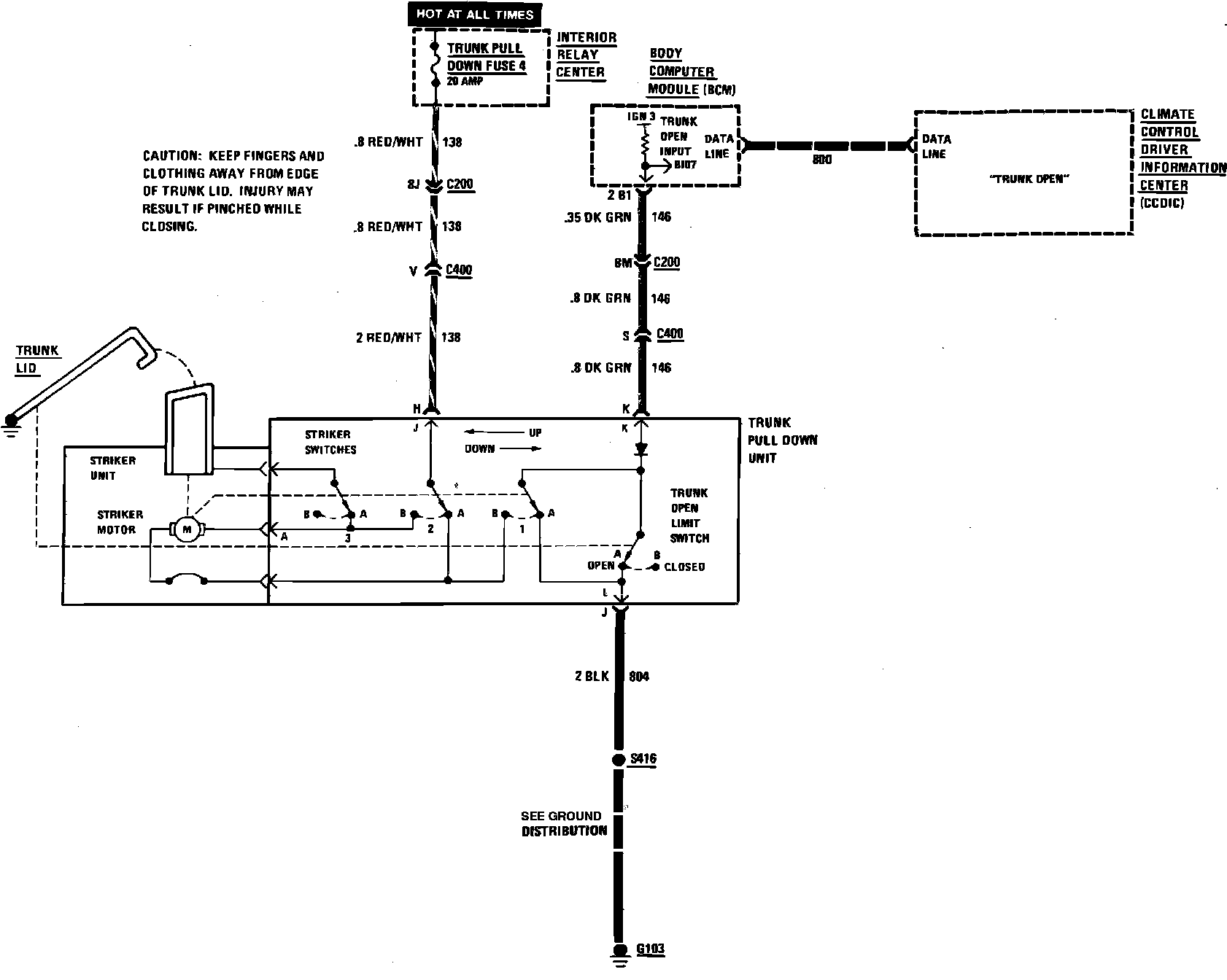

Trunk Pull-Down Wiring Circuit:
