Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

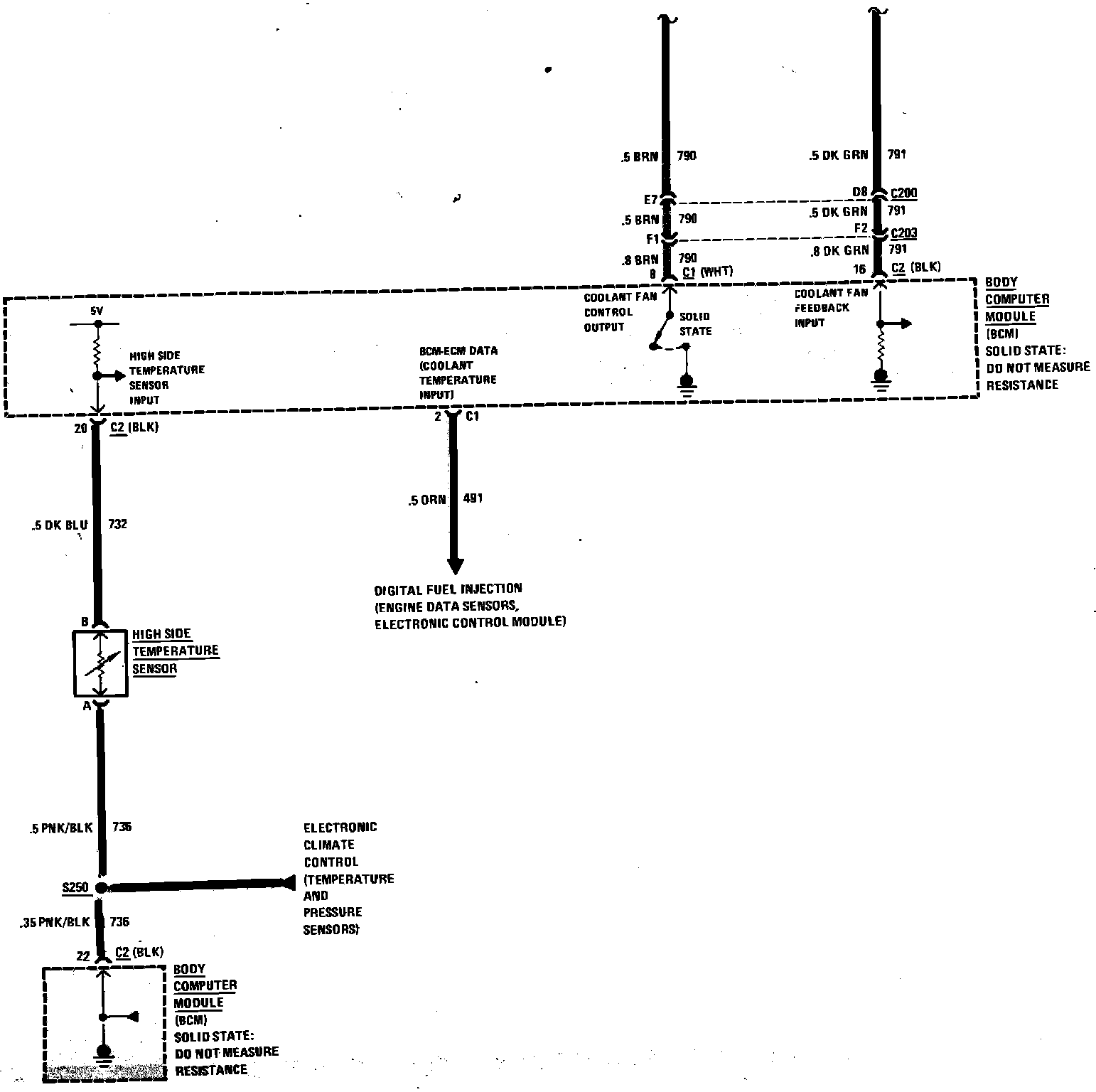

Coolant Fans Wiring Circuit:
Coolant Fans Wiring Circuit:
