Cadillac
>>
1986
>>
Fleetwood Brougham V8-307 5.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Fleetwood Brougham Electronic Climate Control
>>
Chart 14-Rear Defogger on Continuously Diagnosis
Chart 14-Rear Defogger on Continuously Diagnosis

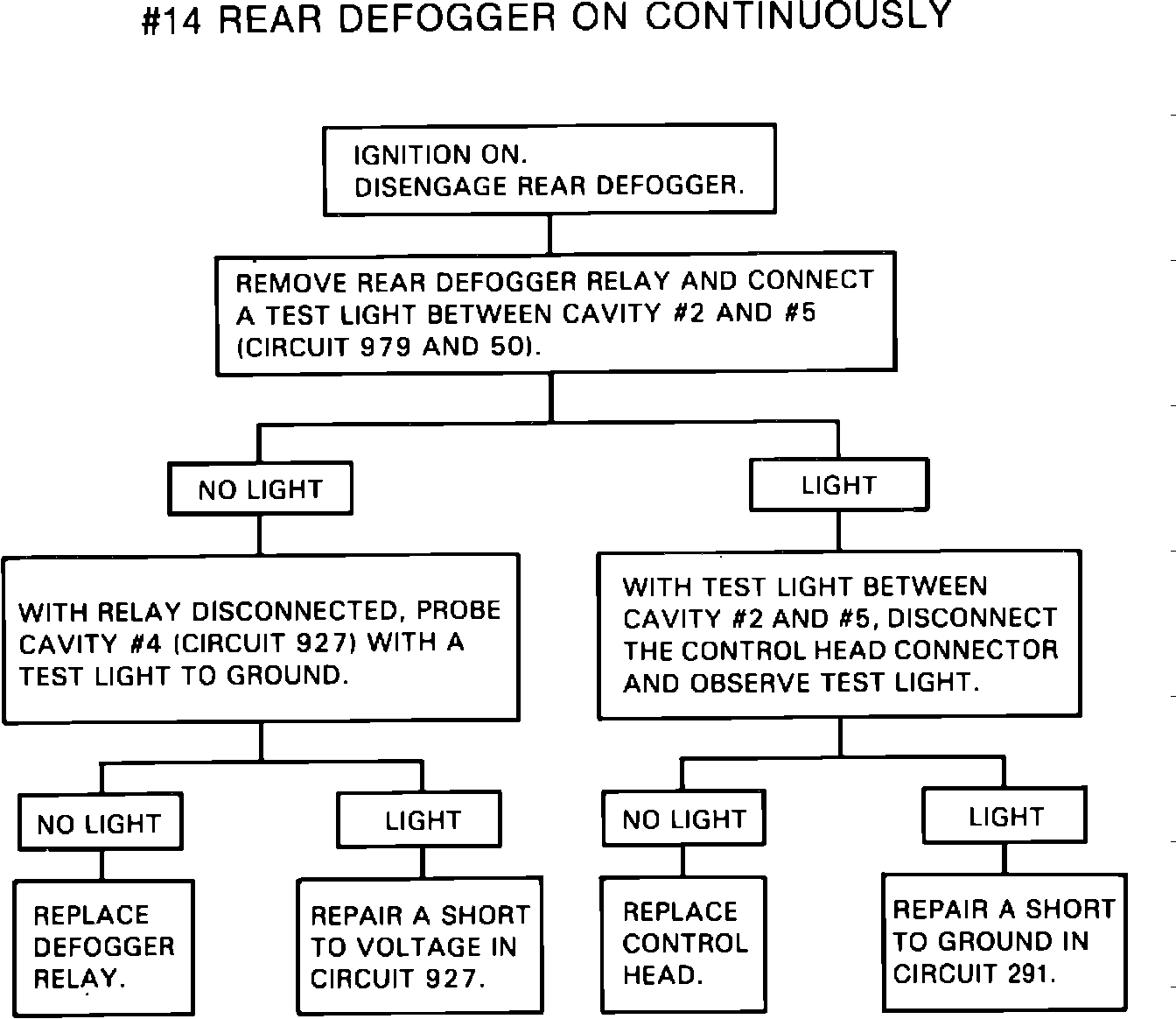

Fig. 18 Rear defogger on continuously diagnosis chart:
