Chart 13-Rear Defogger Inoperative Diagnosis
Chart 13-Rear Defogger Inoperative Diagnosis

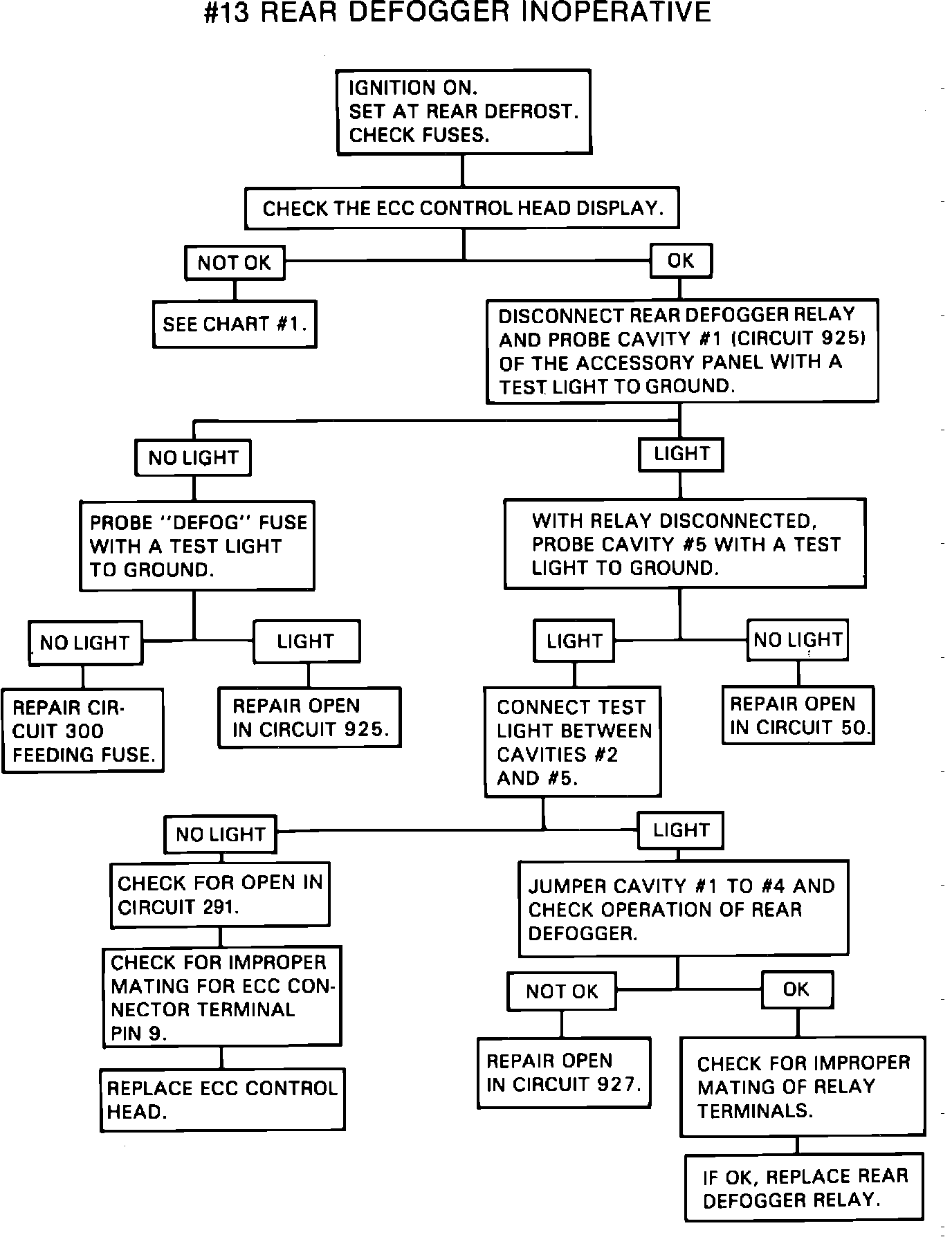

Fig. 17 Rear defogger inoperative diagnosis chart:
