Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1986
>>
Fleetwood Brougham V8-307 5.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Fleetwood Brougham Electronic Climate Control
>>
Chart 11-Insufficient Heat at Temp Setting of 85 Degrees
Chart 11-Insufficient Heat at Temp Setting of 85 Degrees

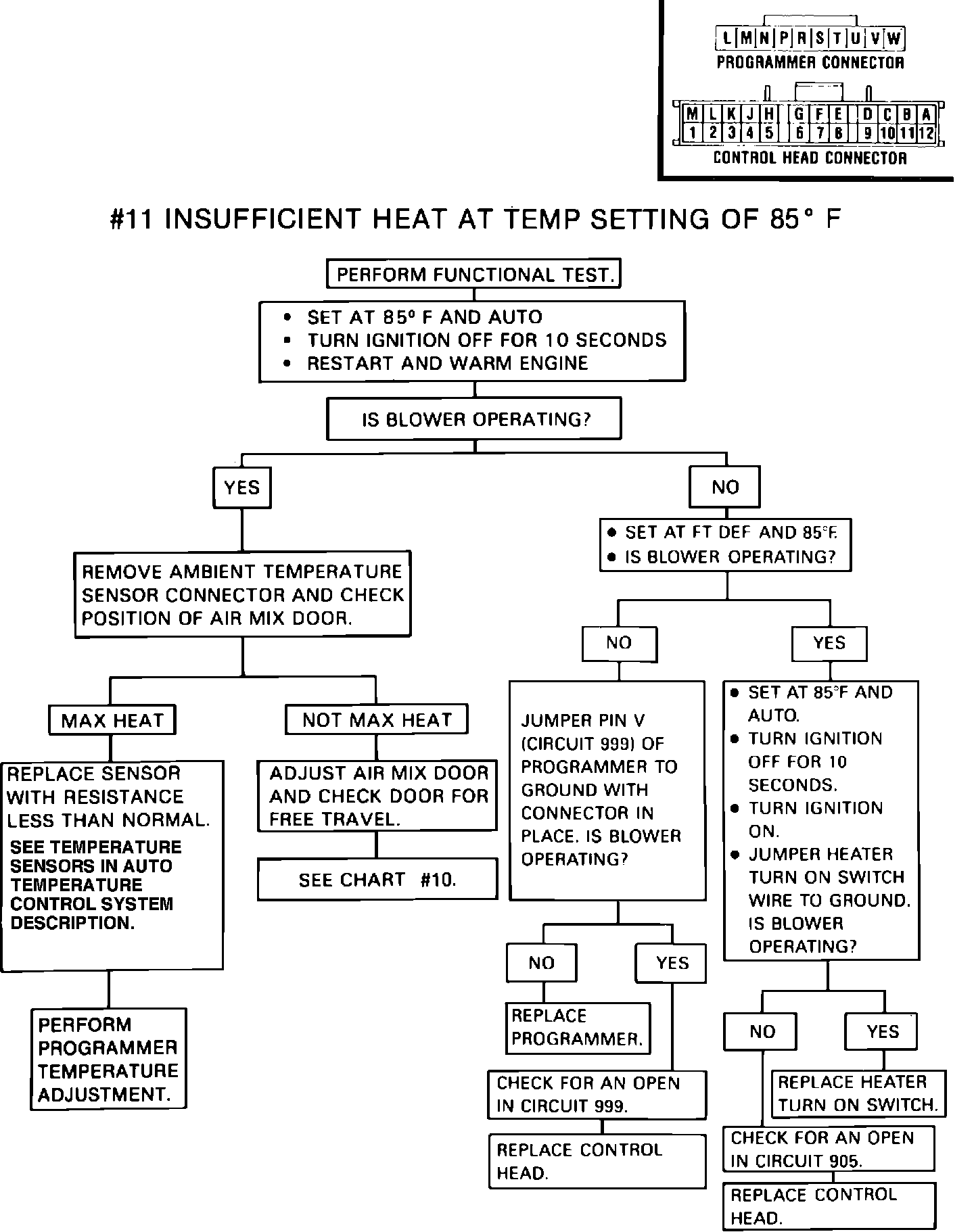

Fig. 15 Insufficient heat at temp. setting of 85 degrees diagnosis chart:
