Chart 1-No Display on EEC Control Head Diagnosis
Chart 1-No Display on EEC Control Head Diagnosis

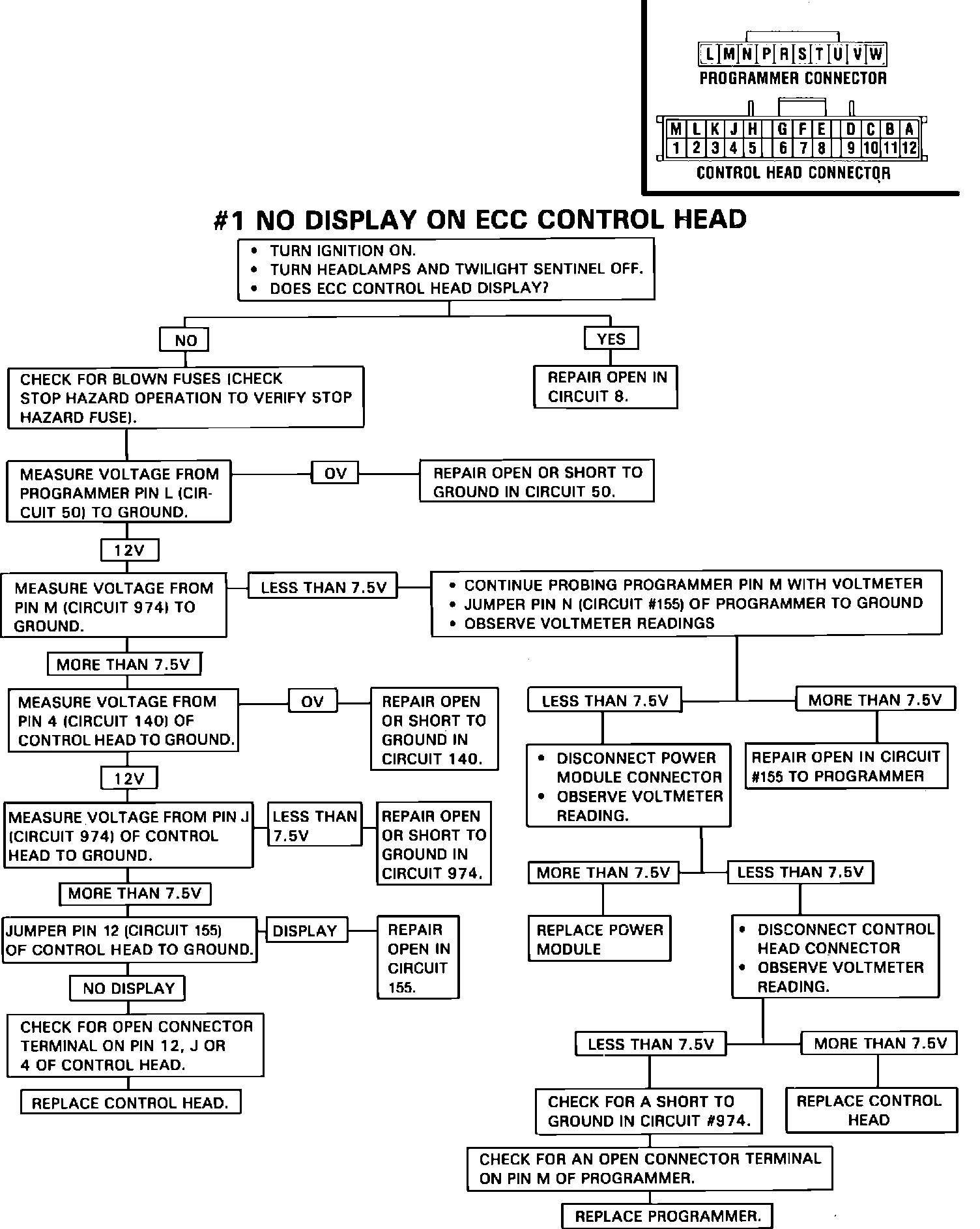

Fig. 5 No display on ECC control head diagnosis chart:
