Water Pump Replacement

WATER PUMP

Fig. 14 Drive belt removal:

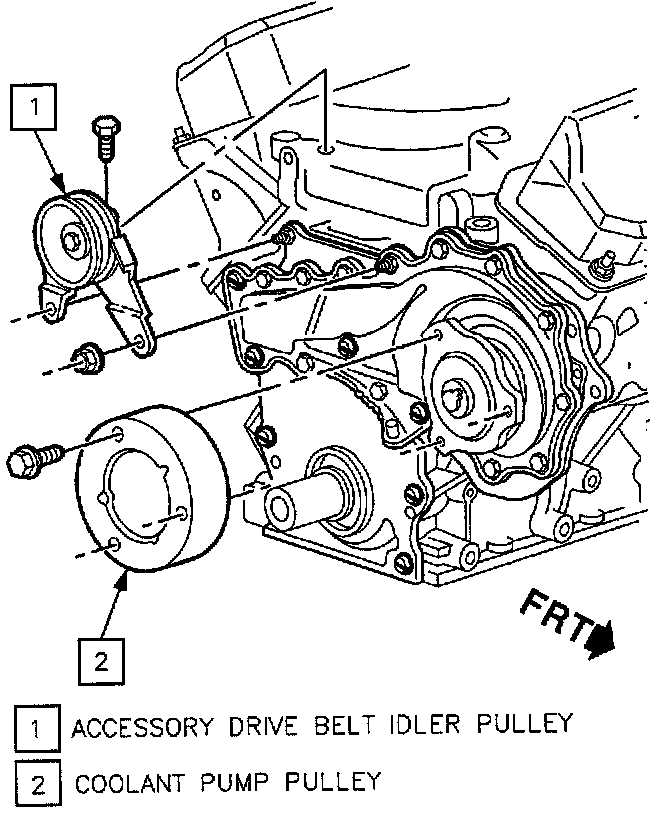

Drive Belt Idler And Coolant Pump Pulleys:

Water Pump Assembly:

Fig. 23 Water Pump Tightening Sequence & Specifications:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Drain coolant.
3. A.I.R. filter assembly.
4. Cross car brace.
5. Coolant recovery tank.
6. Accessory drive belt.
7. Drive belt idler pulley and bracket.
8. Water pump pulley.
9. Water pump.
10. Water pump gasket and discard.

CLEAN
^ Water pump and engine front cover sealing surfaces.

INSTALL OR CONNECT
1. Thread the 3 water pump pulley bolts into the hub of the new water pump, then remove the 3 bolts. This will pre-thread the hub. Be sure to start the bolts square to the hub.
2. New water pump gasket on front cover studs.
3. Water pump.

TIGHTEN
^ All water pump fasteners to specifications.

4. Water pump pulley.
5. Drive belt idler pulley and bracket.
6. Accessory drive belt.
7. Cross car brace.
8. A.I.R. filter assembly.
9. Fill Cooling system.
10. Negative battery cable.
