Cadillac
>>
1986
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Data Sensors
Engine Data Sensors

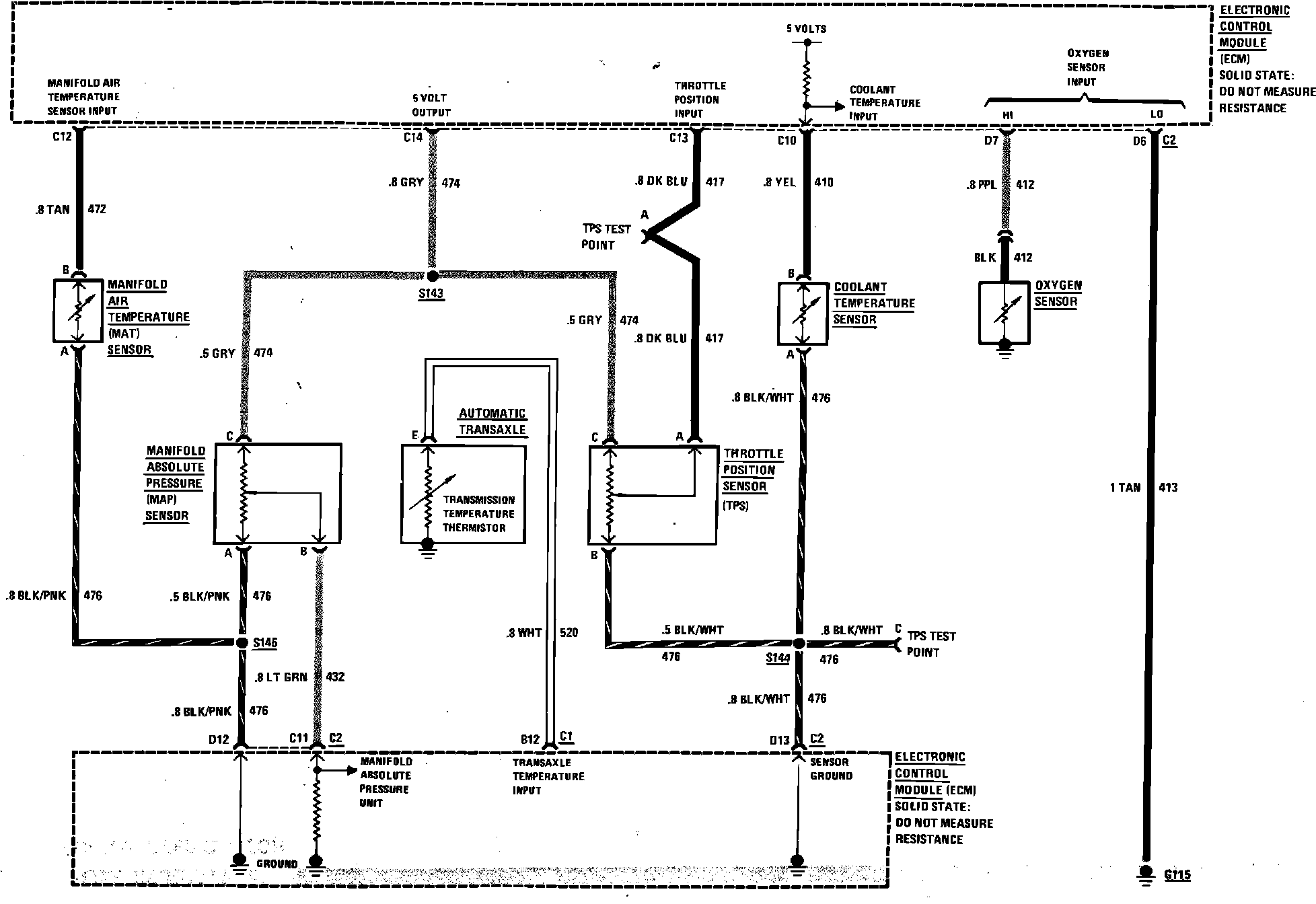

Digital Fuel Injection Engine Data Sensorw Wiring Circuit:
