Home
>>
Cadillac
>>
1986
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Dimmer Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

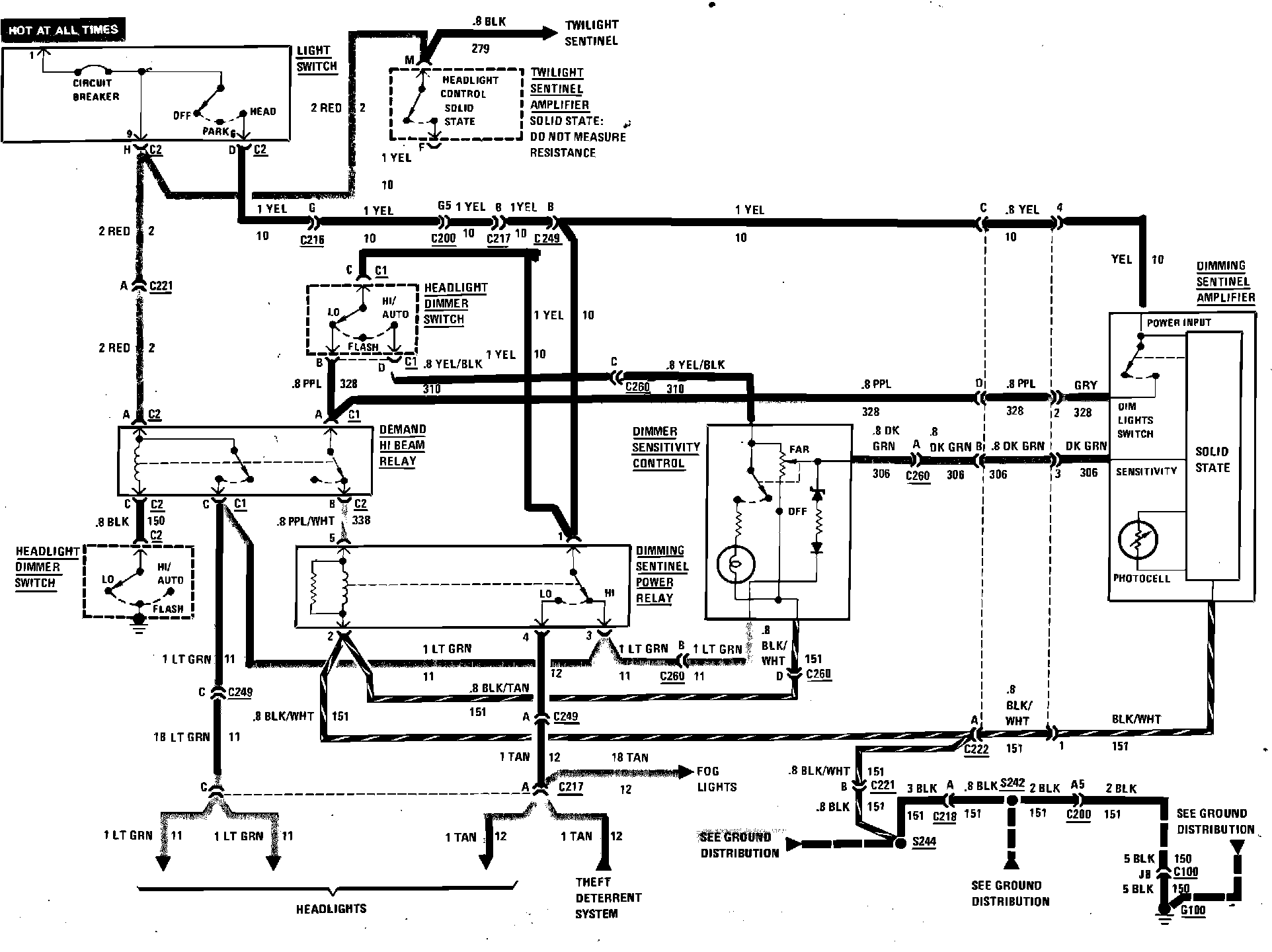

Dimmer Wiring Circuit (Headlamps):
