Chart 8 Insufficient Cooling
Chart 8 Insufficient Cooling

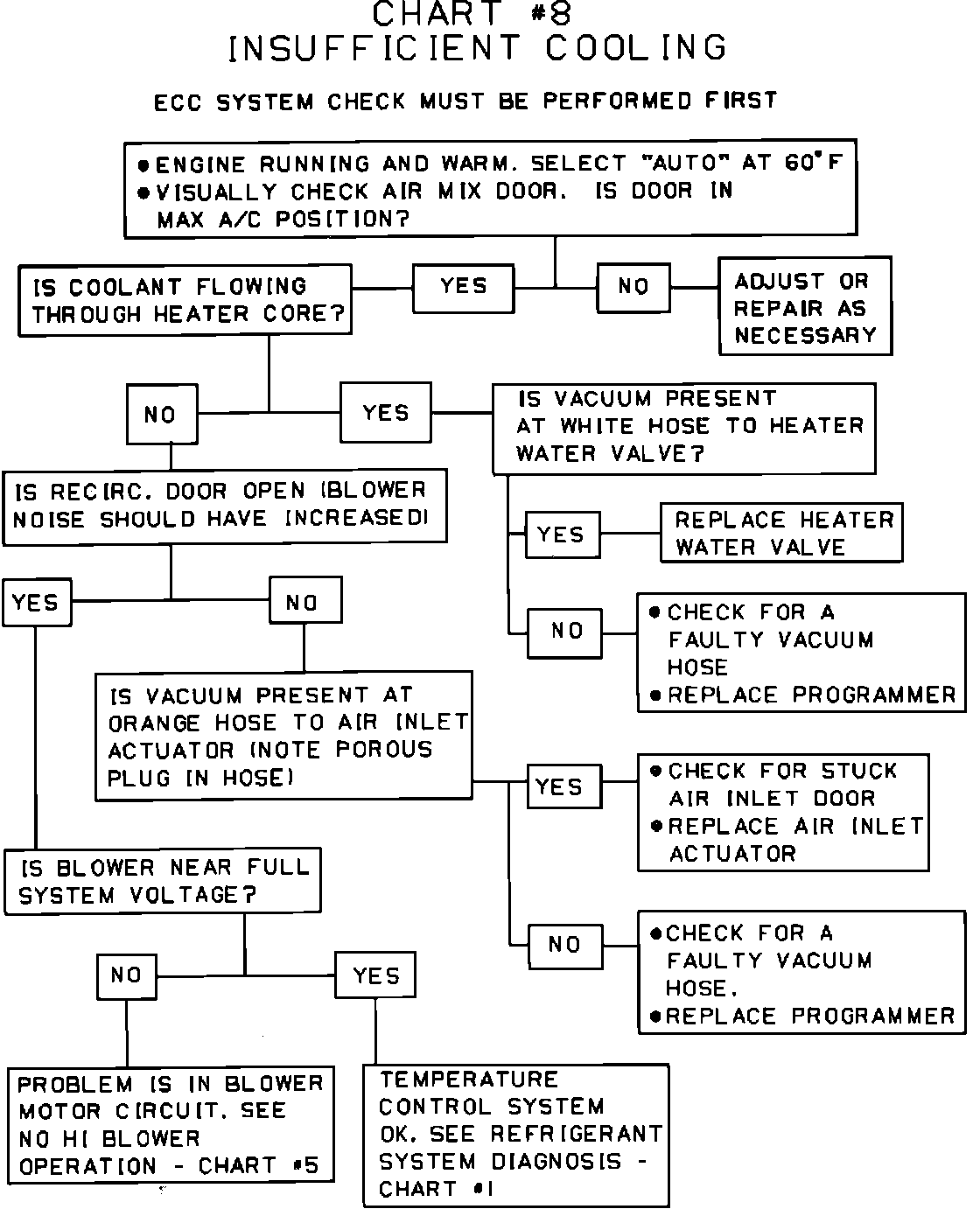

Fig. 14 Insufficient cooling diagnosis chart:
