Cadillac
>>
1986
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
Chart 6 Improper Air Delivery
Chart 6 Improper Air Delivery

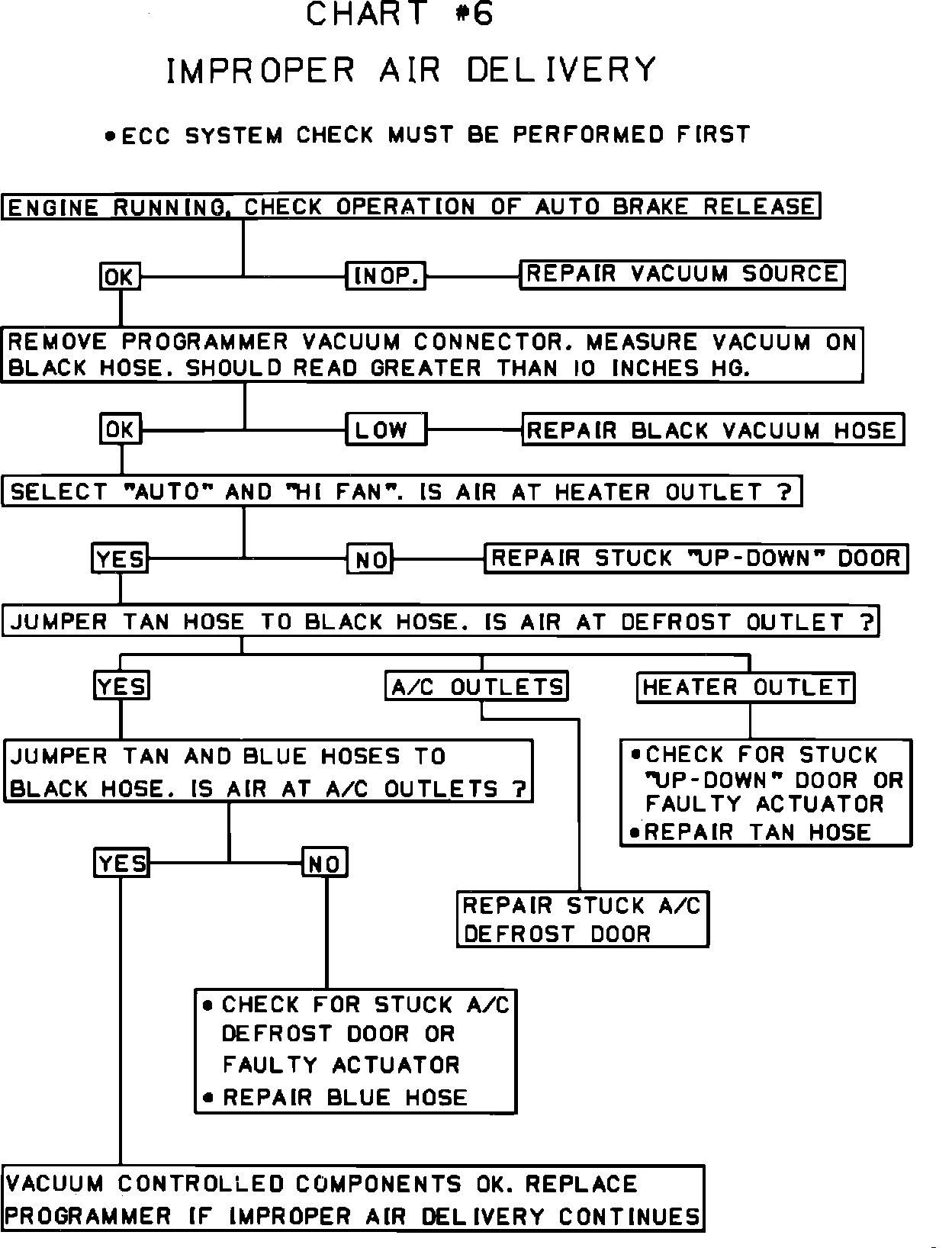

Fig. 12 Improper air delivery diagnosis chart:
