Cadillac
>>
1986
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Pulse
With Pulse

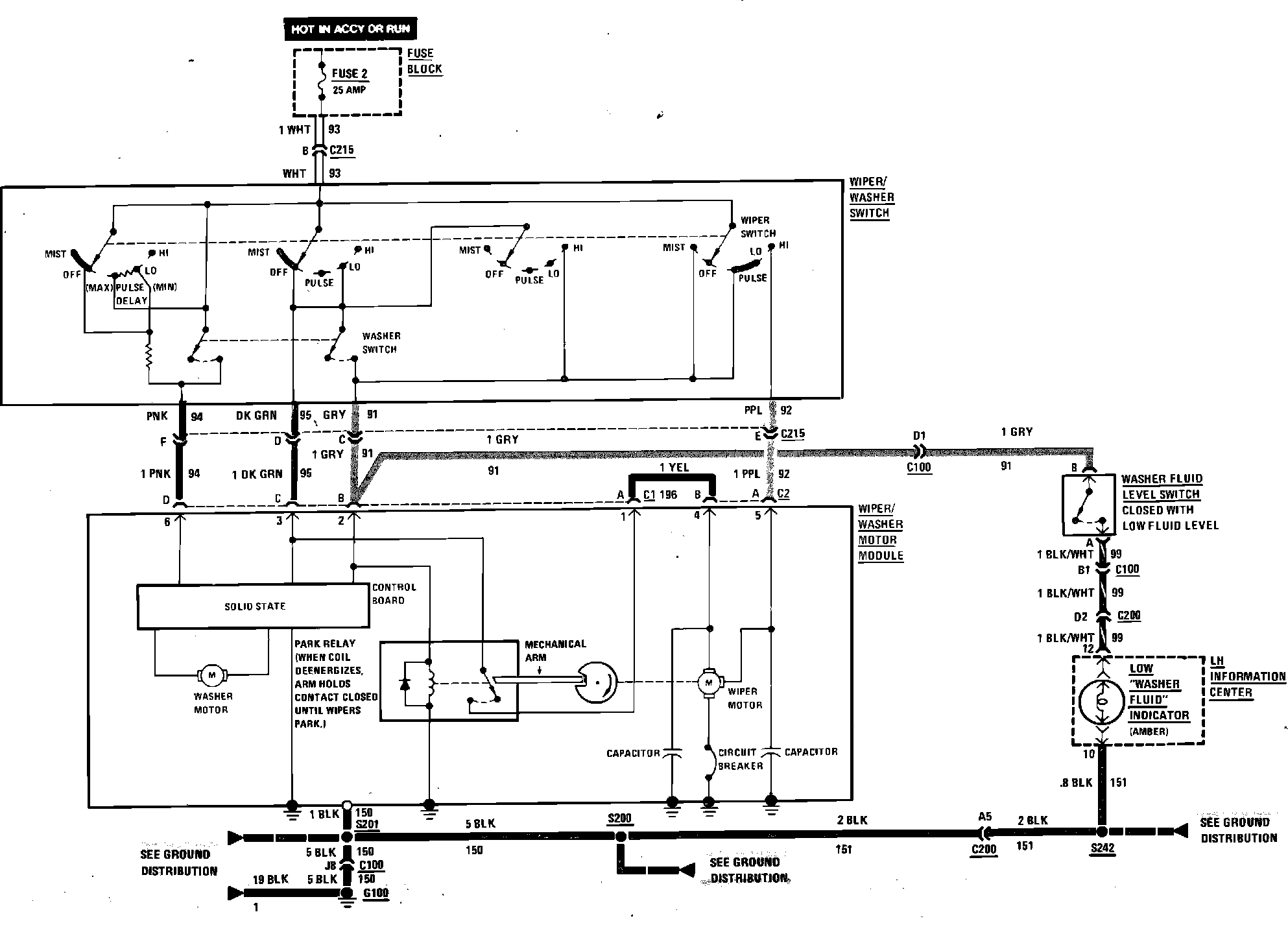

Washer/Wiper Wiring Circuit. With Pulse:
