Less CB Radio

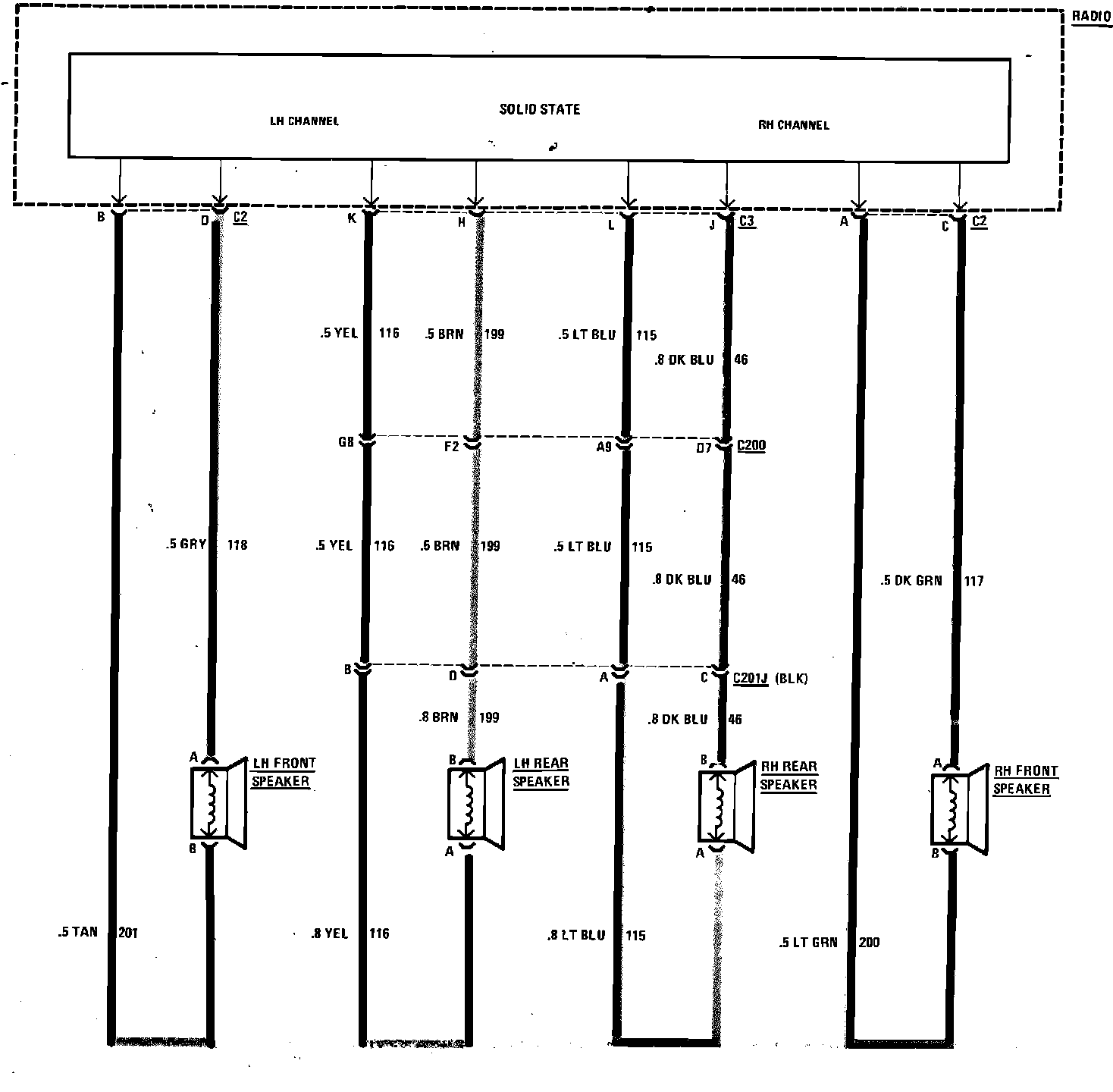

Radio Wiring Circuit (Part 1 of 2). With Electronic Tuning, Less CB:

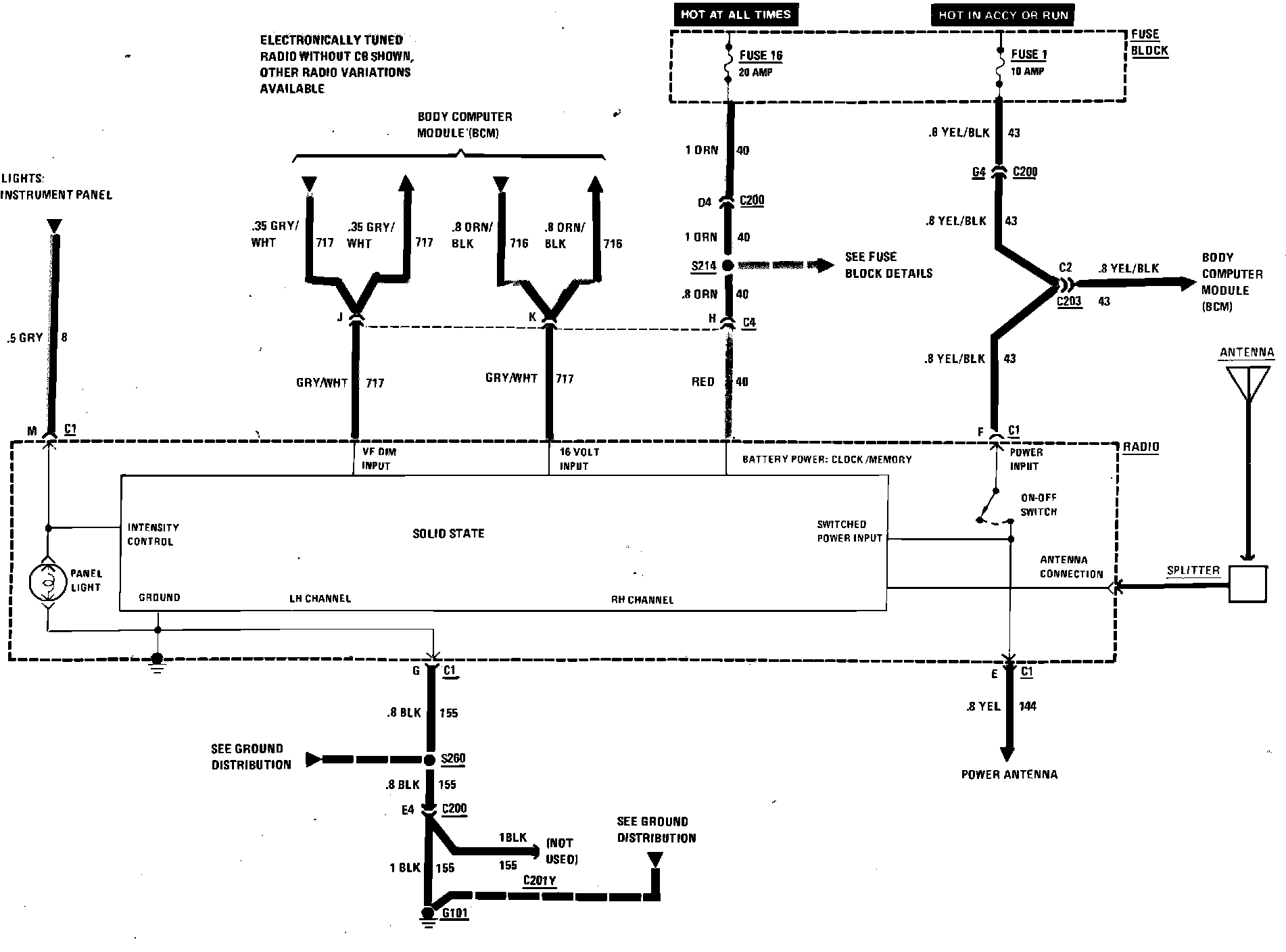

Radio Wiring Circuit (Part 2 of 2). With Electronic Tuning, Less CB:
