Home
>>
Cadillac
>>
1986
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Fog/Driving Lamp
Fog/Driving Lamp

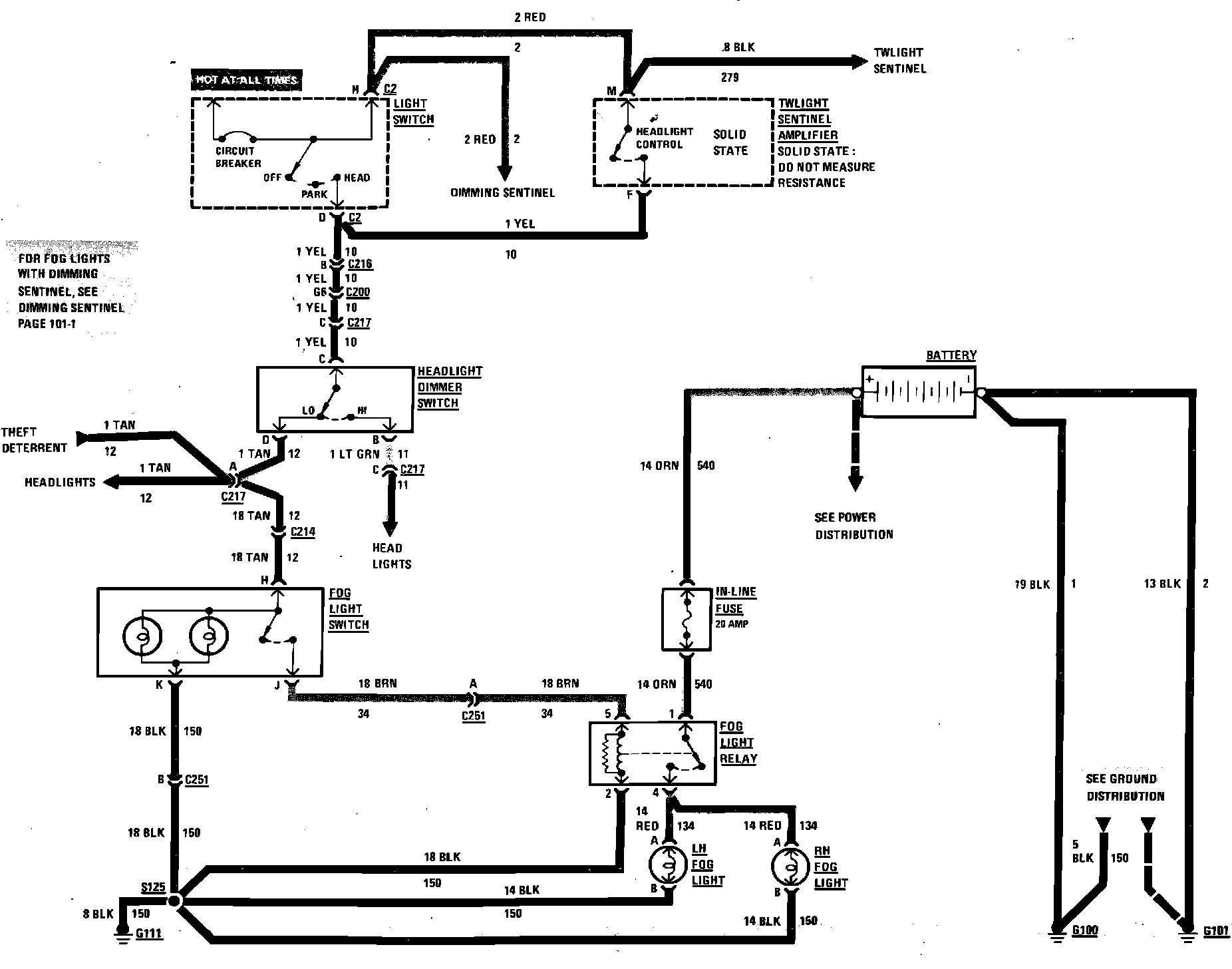

Optional Fog Lamp Wiring Circuit:
