Cadillac
>>
1986
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

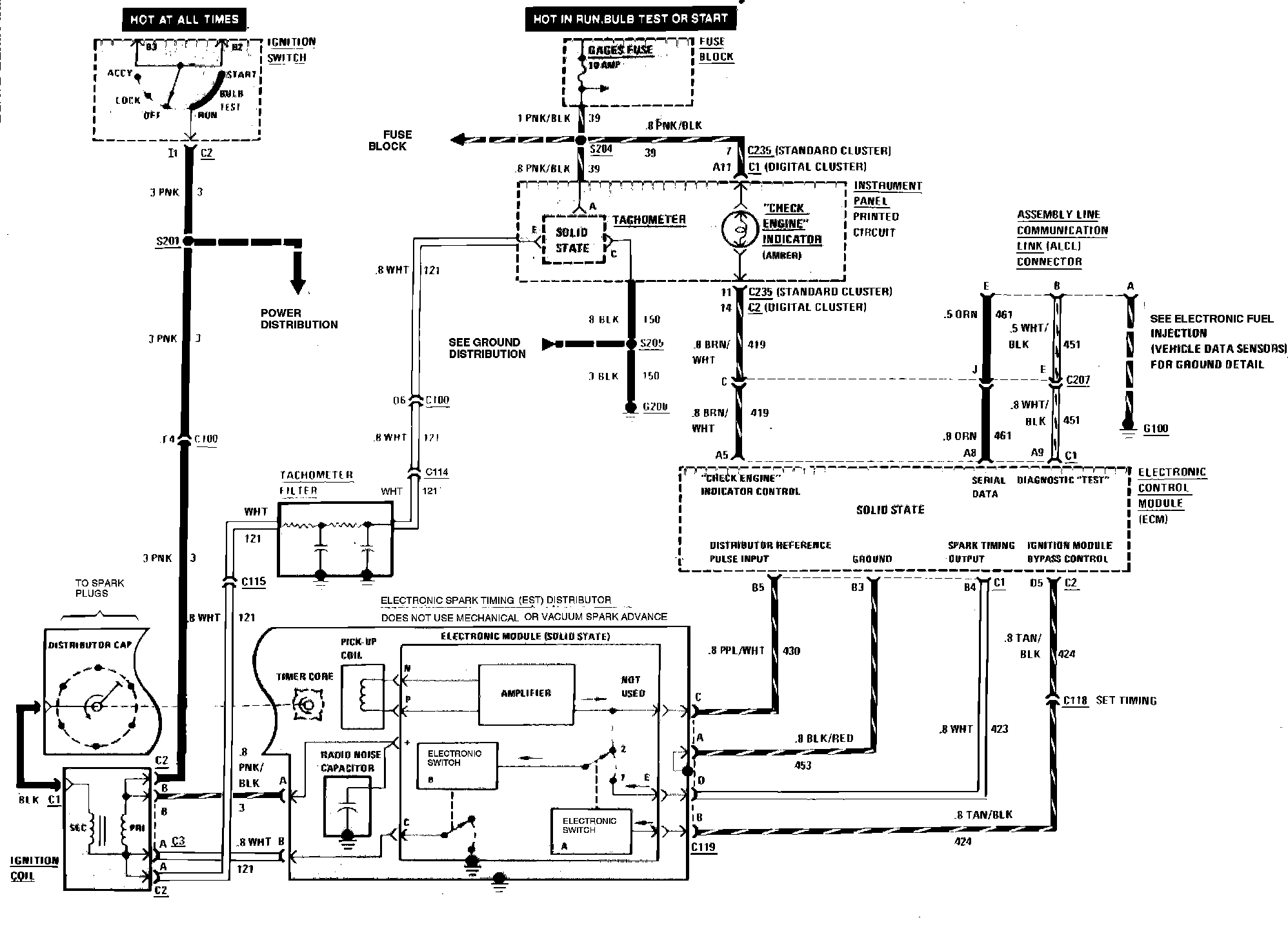

Multiport Fuel Injection (Check Engine Or Service Soon Indicator & Ignition) Wiring Circuit:
