Cadillac
>>
1986
>>
Cimarron L4-121 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G100, 101
G100, 101

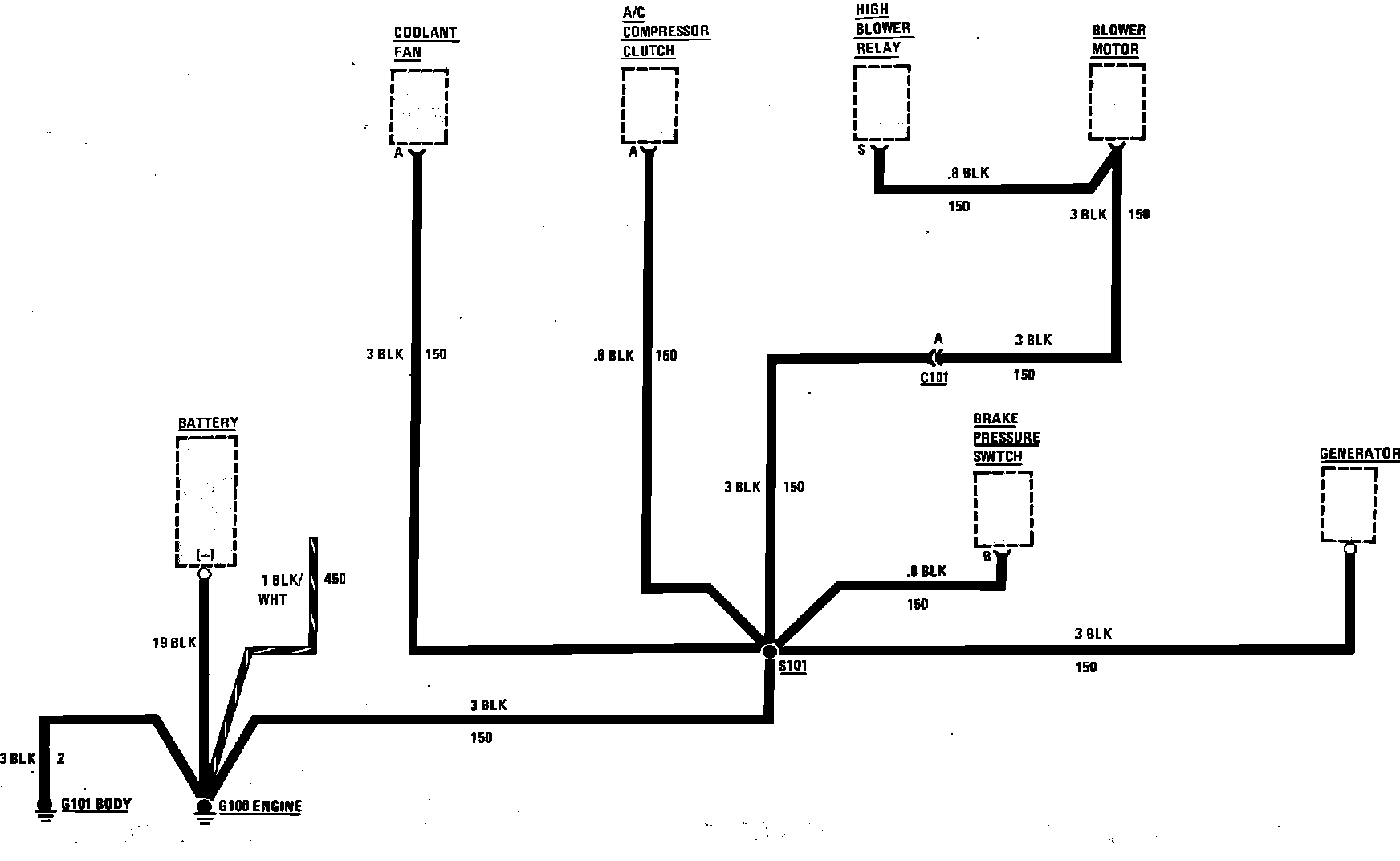

Ground Distribution (G100 & G101):
